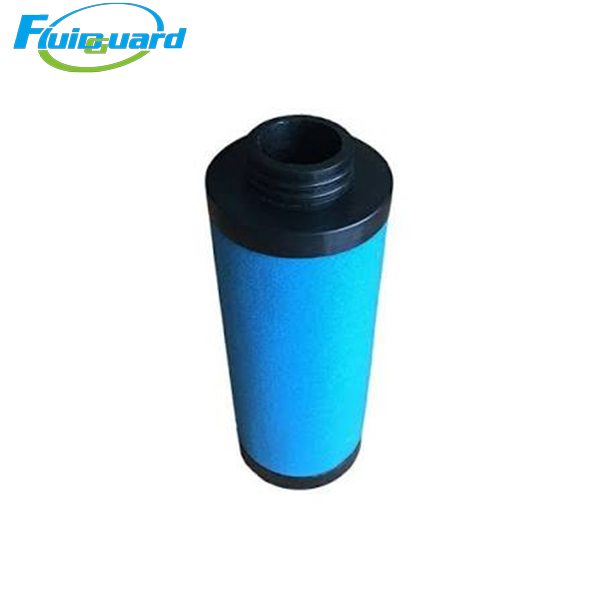

Air Filters

Part No: 2901200402

Filter Media: Multi-layer gradient HV borosilicate micro glass fiber composite with outer hydrophobic foam barrier sleeve

Filtration Performance: Captures solid particles ≥0.01 μm, outlet residual liquid oil mist ≤0.01 ppm

Max Working Pressure: 1.6 MPa

Operating Temperature Range: 2℃ ~ 65℃

Initial Pressure Drop: ≤0.01 MPa

Replacement Alarm Differential Pressure: ≥0.05 MPa

Application Scenarios

Automotive topcoat spraying, electronic small cleanroom production, precision laser cutting, laboratory analytical instruments, food packaging, pharmaceutical auxiliary air supply, high-end printing

Product Features

Outer hydrophobic foam sleeve prevents separated liquid water & oil from re-entering airflow, significantly improve gas-liquid separation efficiency; high liquid-holding glass fiber media stably intercept trace oil mist to achieve ultra-low residual liquid oil standard ≤0.01 ppm.

Deep-pleated low-resistance cartridge design, stable low pressure drop throughout full service cycle, effectively reduce long-term air supply power consumption.

Epoxy sealed composite end caps & anti-corrosion plastic inner support frame, excellent shock resistance; filter media will not deform under long-term continuous airflow impact.

Product Description

It thoroughly removes micro liquid oil mist, free water and fine particulate impurities that cannot be fully captured by front coarse filter, controlling outlet residual liquid oil below 0.01 ppm, providing high-cleanliness compressed air meeting ISO 8573-1 high purity standards for precision spraying, electronic and pharmaceutical processes.

It effectively protects terminal activated carbon filter, extends its service life and reduces overall air system maintenance cost.
