Air Filters

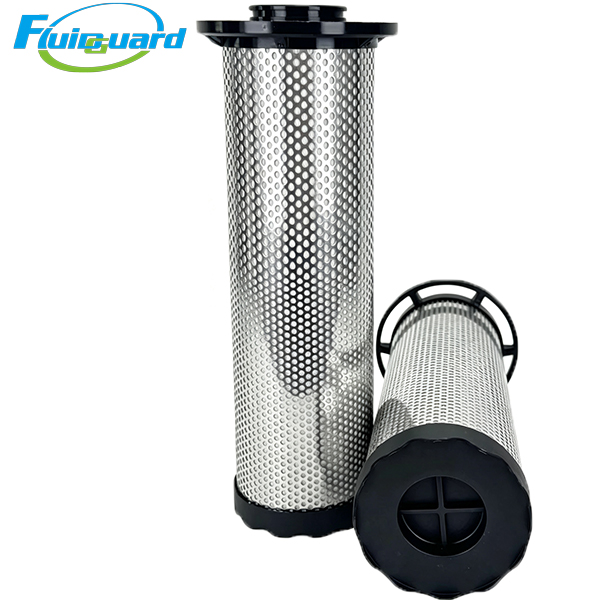

Model: 24242422

Core Technical Specifications

Filter Grade: Grade A Activated Carbon Terminal Adsorption Filtration

Main Function: Adsorb gaseous oil vapor, hydrocarbon odor, volatile organic compounds & residual trace oil mist

Remaining Oil Content After Filtration: ≤0.003 ppm

Composite Filter Media: Outer multi-layer hydrophobic borosilicate glass fiber + high-density coconut shell activated carbon core

Rated Airflow Capacity: 1300 m³/h

Max Working Pressure: 17.2 bar / 250 PSIG

Max Continuous Operating Temperature: ≤80℃

Airflow Direction: Outside-to-Inside

Seal Structure: Integrated black reinforced plastic top & bottom end caps with built-in NBR nitrile O-ring full sealing

Key Product Features

Final-Stage Deep Purification for Oil Vapor & Odor

Must be installed after Grade H superfine coalescing filter. It eliminates invisible gaseous oil vapor and unpleasant odors that glass fiber coalescing media cannot capture, delivering fully odor-free, oil-free ultra-pure compressed air to meet strict high-end production standards.

Low Pressure Drop & Energy Saving

Optimized layered composite structure expands effective adsorption area, maintaining stable low airflow resistance under 24-hour full-load continuous operation. It reduces extra power consumption of air compressors and cuts overall factory air supply operating costs.

Strong Adsorption & Dirt Holding Capacity

Front gradient fiber layer intercepts residual liquid oil mist to prevent rapid saturation of carbon bed; thick high-quality coconut shell carbon provides huge adsorption capacity, extending maintenance intervals and minimizing production downtime during filter replacement.

Heavy-Duty Stainless Steel Anti-Powder Support Cage

Dual stainless steel mesh cages resist impact from high-speed airflow, avoiding media deformation and carbon powder leakage to prevent secondary contamination of terminal precision equipment.

Working Principle

Compressed air after multi-stage pre-filtration enters the cartridge from the outer stainless steel protective mesh. The outer glass fiber layer traps tiny residual liquid oil droplets; the internal high-density activated carbon bed fully adsorbs gaseous oil vapor, hydrocarbon odors and organic volatile substances. Pure, oil-free and odorless compressed air flows to terminal precision production equipment.

Application & Industries

Terminal adsorption filter for large-flow industrial compressed air post-processing systems, only installed downstream of H-grade superfine coalescing filters.

Widely applied in pharmaceutical aseptic production, food sterile packaging, precision electronic assembly, medical equipment processing, optical coating, laboratory analytical instruments, automotive topcoat spraying, heavy-duty laser cutting and factory centralized large-flow air supply systems requiring Class 1 ultra-pure oil-free compressed air.
