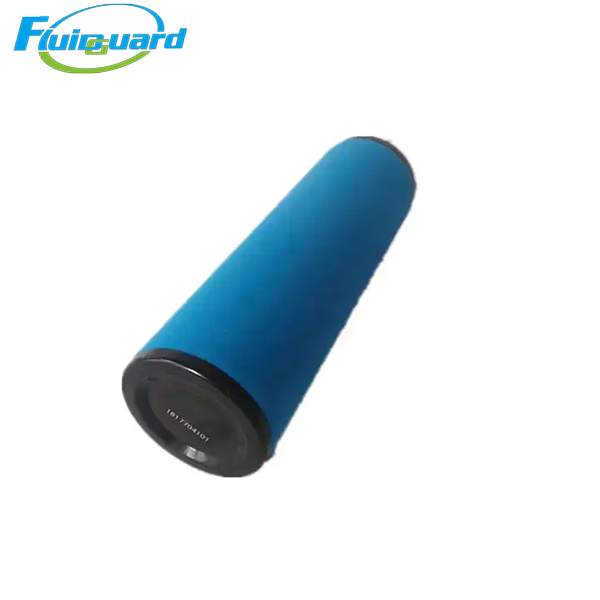

Model : 1617704101
Type : Air Filters
Replacement for : 1617704101
It thoroughly removes micro liquid oil mist, free water and fine particulate impurities that cannot be fully captured by front coarse filter, controlling outlet residual liquid oil below 0.003 ppm, providing high-cleanliness compressed air meeting ISO 8573-1 Class 0 high purity standards for precisi
Part numbers marked "replacement" are not affiliated with the original manufacture.
Fluidguard is a technology-based enterprise integrating industry and trade, with strong technical strength and production capacity.
Part No: 1617704101
Filtration Performance: Captures solid particles ≥0.01 μm, outlet residual liquid oil mist ≤0.003 ppm
Standard Service Life: 4000 working hours; shorten to 2000h under heavy oil mist & high humidity workshop conditions
Max Working Pressure: 1.6 MPa
Operating Temperature Range: 2℃ ~ 65℃
Initial Pressure Drop: ≤0.01 MPa
Replacement Alarm Differential Pressure: ≥0.05 MPa
Application Scenarios
Automotive high-gloss topcoat spraying, electronic cleanroom manufacturing, precision laser cutting, pharmaceutical sterile production air supply, food & beverage packaging, laboratory precision analytical instruments, high-end printing & textile dyeing
Product Features
Outer hydrophobic foam sleeve blocks separated liquid water & oil from re-entering airflow, greatly improves gas-liquid separation efficiency; high liquid-holding glass fiber media stably intercept trace oil mist to reach ultra-low residual liquid oil standard ≤0.003 ppm.
Deep-pleated low-resistance cartridge design, stable low pressure drop throughout full service cycle, effectively reduce long-term air supply power consumption and electricity cost.
Epoxy sealed composite end caps & stainless steel inner support screen, excellent anti-corrosion and shock resistance; filter media will not deform under long-term continuous large airflow impact.
Standard double O-ring plug-in quick-install structure, tool-free replacement to cut maintenance downtime; dual EPDM sealing rings resist aging & temperature fluctuation to eliminate pipeline air leakage.
Product Description
It thoroughly removes micro liquid oil mist, free water and fine particulate impurities that cannot be fully captured by front coarse filter, controlling outlet residual liquid oil below 0.003 ppm, providing high-cleanliness compressed air meeting ISO 8573-1 Class 0 high purity standards for precision spraying, electronic and pharmaceutical processes.
It effectively protects terminal activated carbon filter, extends its service life and reduces overall air system maintenance cost.
