Air Filters

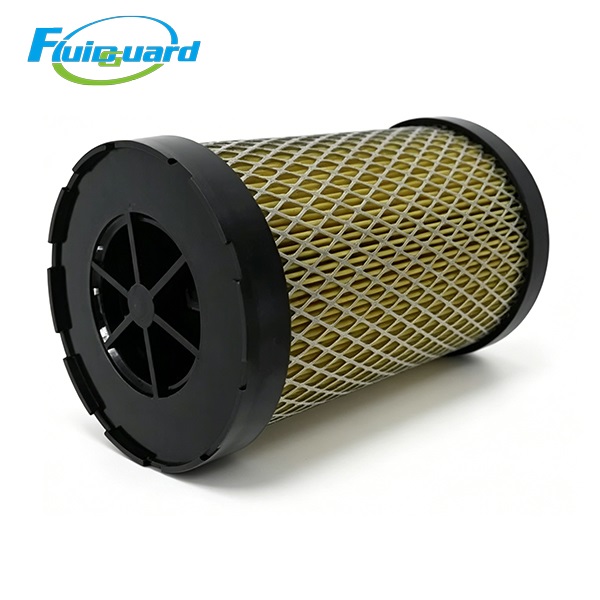

Part No: 12075R

Filtration Precision: Captures solid particles ≥1 μm, residual oil aerosol ≤0.5 ppm

Contaminant Removal: Large dust, rust particles, bulk liquid water & coarse oil droplets

Standard Service Life: 5000–6000 working hours

Max Working Pressure: 1.6 MPa

Operating Temperature Range: 2℃ ~ 65℃

Initial Pressure Drop: ≤0.008 MPa

Replacement Alarm Differential Pressure: ≥0.05 MPa

Gross Weight: ~0.50 KG

Dimensions (mm)

Outer Diameter: 75 mm

Central Inner Hole Diameter: 40 mm

Overall Height: 125 mm

Application Scenarios

Front-stage pretreatment of compressed air systems, general machinery pneumatic tools, workshop air supply, dust-heavy industrial workshops, pre-protection for refrigerated air dryers, extends service life of downstream S/A/AC grade fine filters

Product Features

Thick gradient glass fiber media with ultra-high dirt holding capacity, intercept massive rust, sand, dust and bulk liquid water at the front stage, reduce contaminant load of high-precision downstream filters.

Ultra-low initial pressure drop design, minimizes energy loss in long-term continuous operation.

Reinforced impact-resistant composite end caps & anti-corrosion plastic support frame, anti-vibration, media no collapse under heavy dust airflow impact.

Universal twist-lock quick-disassembly buckle, tool-free replacement to cut maintenance downtime; nitrile rubber sealing ring resists aging and high temperature to eliminate pipeline air leakage.

Product Description

It removes most coarse solid particles, bulk condensed water and large oil droplets from raw compressed air, greatly lowering pollutant load on subsequent high-efficiency filters and air dryers, effectively prolonging the service life of precision filter elements and reducing overall maintenance costs of the air system.

It is widely used as front pretreatment for multi-stage compressed air purification systems.
