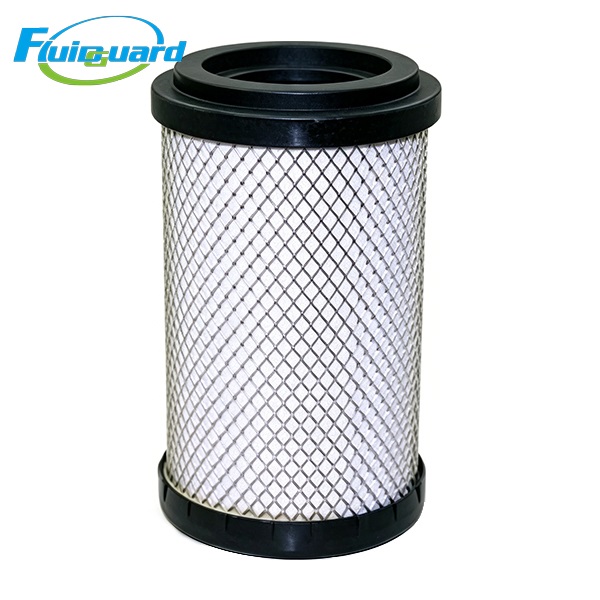

Air Filters

Part No: 12075A

Core Functions: Capture oil mist, liquid water and fine dust; adsorb hydrocarbon oil vapor, peculiar odor and organic volatile substances

Standard Service Life: 4000 working hours; shorten to 2000 hours under heavy oil pollution conditions

Max Working Pressure: 1.6 MPa

Initial Pressure Drop: ≤0.01 MPa

Gross Weight: 0.38 KG

Dimensions (mm)

Outer Diameter: 75 mm

Central Inner Hole Diameter: 40 mm

Overall Height: 125 mm

Application Scenarios

Sterile food packaging, pharmaceutical production air supply, laboratory precision instruments, topcoat spraying lines, electronic clean workshops, breathing-grade clean air, precision laser cutting, high-end pneumatic testing equipment

Product Features

Double-layer composite structure: The glass fiber layer removes liquid oil and water first, then activated carbon deeply absorbs trace oil vapor and peculiar smell to obtain oil-free, odorless ultra-clean compressed air.

High-density columnar activated carbon with huge adsorption capacity, effectively eliminate volatile oil gas that cannot be filtered by ordinary coalescing filters.

Low-resistance deep pleated design, low initial pressure drop, effectively reduce long-term air supply power consumption.

Reinforced plastic end caps and anti-corrosion support frame, vibration-resistant, not easy to deform under continuous airflow impact.

Standard twist-lock quick-disassembly structure, tool-free replacement to save maintenance time; nitrile rubber sealing ring has good aging resistance to eliminate pipeline air leakage.

Strict factory air flow and adsorption efficiency test before delivery, stable long-term purification performance.

Product Description

It firstly intercepts liquid water, oil mist and fine solid particles through micro glass fiber media, then uses high-performance activated carbon to thoroughly adsorb residual oil vapor and organic odor in compressed air, achieving breathing-level ultra-clean air with residual oil less than 0.001 ppm.

It avoids product surface yellowing, paint pinholes, instrument corrosion and other failures caused by oil vapor pollution, widely used in high-standard clean air production processes.
