Air Filters

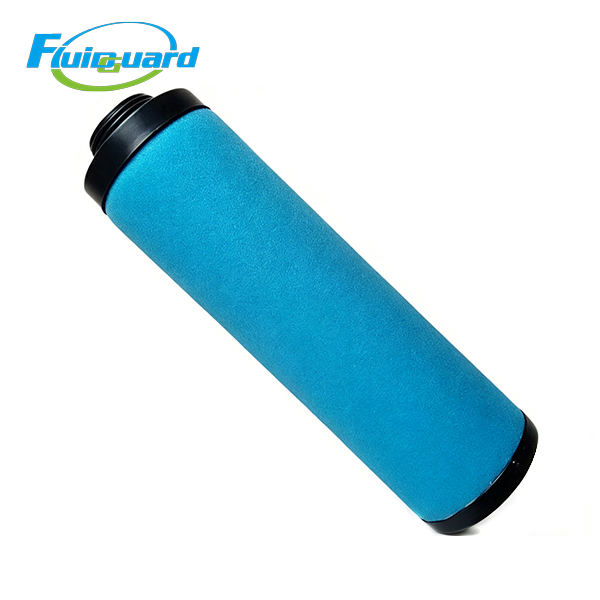

Part No: 2258293108

Filter Media: Multi-layer gradient borosilicate glass fiber media

Filtration Precision: 1 μm solid particle removal

Max Residual Oil Content at Outlet: ≤0.5 ppm

Service Life: 4000–6000 working hours

Max Working Pressure: 1.6 MPa

Operating Temperature Range: 2℃ ~ 65℃

Initial Pressure Drop: ≤ 0.012 MPa

Net Weight: 1.3 kg

Outer Diameter: 78mm

Overall Length: 265mm

Application Scenarios

General mechanical processing, plastic injection molding, pneumatic automation equipment, sandblasting, workshop air supply, pre-filtration stage before C/D high-efficiency coalescing filters, general industrial pneumatic tools

Product Features

Multi-gradient progressive glass fiber media, first-stage coarse filtration to intercept large solid dust, rust particles and bulk liquid water, reduce load on subsequent fine filters, extend service life of downstream C/D grade elements.

Straight cylindrical low-resistance structure with minimal initial pressure loss; differential pressure rises slowly during long continuous operation to cut overall pipeline energy consumption.

Reinforced anti-corrosion engineering plastic end caps with integrated drainage design, automatically discharge condensed liquid to avoid liquid re-entrainment into clean compressed air.

Product Description

As the primary front-stage filtration component, it adopts multi-layer gradient glass fiber technology to capture 1μm solid particles and bulk liquid moisture in compressed air, controlling outlet residual oil within 0.5ppm. It bears most coarse contaminants to protect high-precision C/D grade coalescing filters behind, greatly lowering replacement frequency of expensive fine filter elements.

It serves as the first purification barrier for general industrial compressed air pipelines, effectively reducing wear and failure rate of downstream pneumatic cylinders, valves, painting and laser equipment, cutting long-term maintenance costs of the whole air treatment system.
