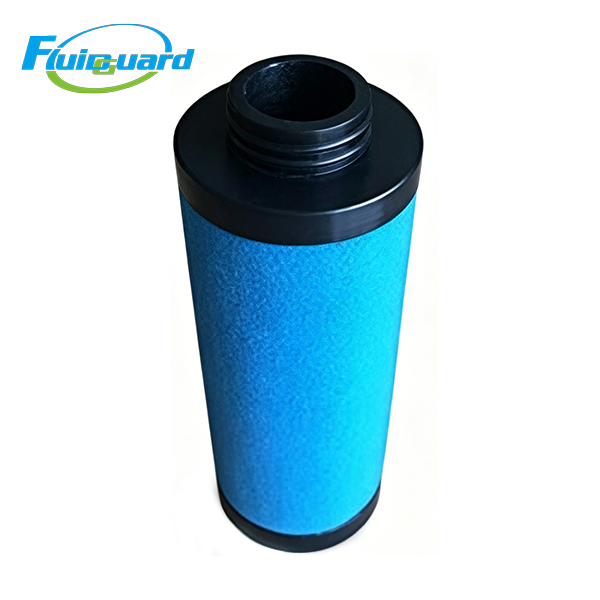

Air Filters

Part No: 2258293208

Filter Media: Multi-layer gradient borosilicate glass fiber coalescing media

Filtration Precision: 0.01 μm oil aerosol removal

Residual Oil Content at Outlet: ≤ 0.008 ppm

Service Life: 4000–6000 working hours

Max Working Pressure: 1.6 MPa

Operating Temperature Range: 2℃ ~ 65℃

Initial Pressure Drop: ≤ 0.015 MPa

Net Weight: 1.4 kg

Dimensions (mm)

Outer Diameter: 78

Overall Length: 265

Application Scenarios

Electronic component assembly, food & pharmaceutical production, laser cutting, precision measuring instruments, plastic injection molding, industrial painting workshops, laboratory ultra-clean air supply, automated pneumatic production lines

air. Product Description

air.

Product Features

Multi-layer gradient glass fiber coalescing media with high oil & moisture holding capacity, efficiently intercepts micro oil mist, water vapor and solid particles, maintains stable ultra-low residual oil output throughout the full service cycle.

Compact straight cylindrical low-resistance structure with low initial pressure loss; differential pressure rises slowly under long continuous operation to reduce energy consumption of the whole air pipeline system.

Reinforced anti-corrosion plastic end caps with integrated drainage design, automatically discharges condensed liquid to prevent secondary oil re-entrainment into clean compressed air.

Product Description

It adopts multi-stage coalescing separation technology to capture 0.01μm ultra-fine oil droplets and moisture mixed in compressed air, controlling outlet residual oil down to 0.008ppm. Condensed oil and water accumulate at the filter bottom and drain out through the built-in flow channel, avoiding secondary contamination of clean air.

It provides high-purity oil-free compressed air protection for downstream precision equipment, measuring instruments, painting and pharmaceutical production lines, effectively reducing failure rate and maintenance cost of post-processing purification equipment.
