Other Filters

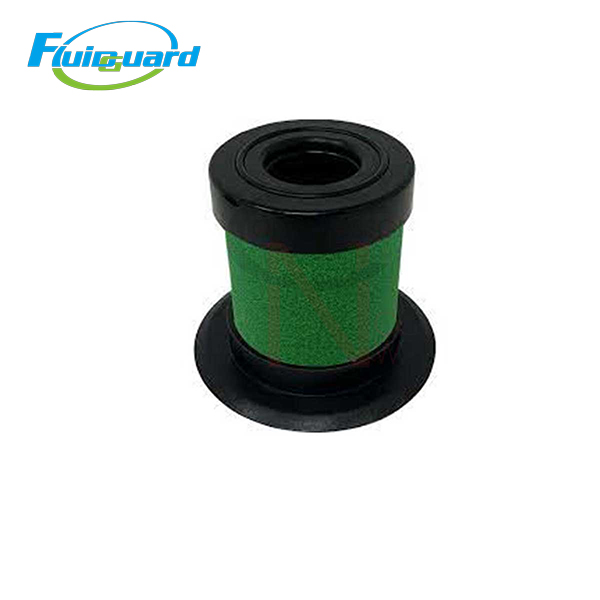

Part No: 9.4885.0

Filtration Performance:

Absolute solid particle interception: 0.01 μm

Residual liquid oil mist carryover: ≤0.003 ppm

Max Working Pressure: 1.6 MPa

Operating Temperature Range: 2℃ ~ 66℃

Initial Differential Pressure: ≤0.012 MPa

Replacement Trigger Differential Pressure: ≥0.06 MPa

Standard Service Life: 8,000 working hours or 12 months

Physical Dimensions: Height 90 mm, Outer Diameter 42 mm, Inner Diameter 19.5 mm

Net Weight: 0.13 kg

Core Functions

Adsorbs oil vapor, volatile organic compounds (VOCs) and unpleasant odors that cannot be removed by upstream B/C/D coalescing filter elements

The front microglass layer intercepts residual submicron oil mist and fine dust to protect internal activated carbon from rapid saturation

Outer hydrophobic foam automatically drains condensed liquid to avoid secondary liquid re-entrainment into airflow, preventing carbon medium failure caused by water soaking

Produces ultra-dry, odor-free oil-free compressed air, the final guarantee for high-standard production processes

Extends service life of downstream precision equipment, spray guns, electronic components and analytical instruments

Typical Application Scenarios

Small auto parts high-gloss spray lines, laboratory precision analytical equipment, food & beverage odor-free filling packaging, small electronic component assembly cleanrooms, optical lens polishing, small lithium battery pilot labs, medical sterile air supply

Product Features

Silicon-free glass fiber pre-filter layer eliminates silicon precipitation risk, fully compliant with automotive topcoat and optical manufacturing requirements

High-purity coconut shell activated carbon with large specific surface area, stable adsorption capacity for oil vapor and organic odors

Integrated anti-corrosion metal end caps with built-in sealing gaskets, resistant to high temperature and all types of compressor lubricant oil, zero air leakage after installation

Compact cylindrical structure with built-in pull ring for quick tool-free disassembly and replacement
