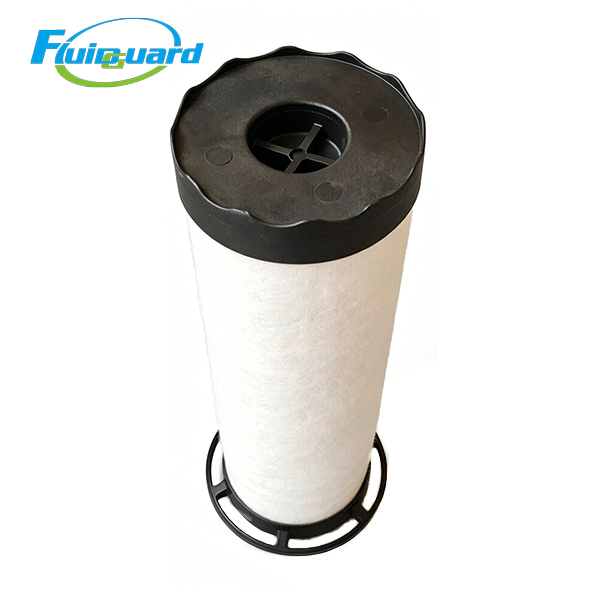

Part No: 24242448

Filter Media: Multi-layer HV borosilicate micro glass fiber composite coalescing media

Filtration Precision: Captures solid particles ≥0.01 μm, residual oil content ≤0.01 ppm

Separation Efficiency: ≥99.999% for oil mist, water vapor and fine dust

Standard Service Life: 4000 working

Max Working Pressure: 1.6 MPa

Operating Temperature Range: 2℃ ~ 65℃

Initial Pressure Drop: ≤0.01 MPa

Replacement Alarm Differential Pressure: ≥0.05 MPa

Gross Weight: 0.48 KG

Dimensions (mm)

Cartridge Outer Diameter: 78

Central Inner Hole Diameter: 34

Overall Height: 235

Application Scenarios

Laser cutting, precision parts machining, pharmaceutical clean air, food packaging, automotive spray workshops, electronic component assembly, laboratory ultra-dry air supply, printing and textile compressed air purification

Product Features

Multi-gradient ultra-fine glass fiber coalescing media with large liquid holding capacity, efficiently removing trace oil, water mist and micro impurities to deliver ultra-clean compressed air.

Compact vertical cartridge design with ultra-low initial pressure drop, cutting air supply energy consumption and operation cost.

High-strength reinforced plastic end caps and anti-corrosion plastic support skeleton, vibration-resistant and immune to oil/water corrosion; media will not deform under long-term airflow impact.

Unique top twist-lock quick-disassembly structure, tool-free replacement to save maintenance time. Fluorine rubber O-ring features excellent high temperature & aging resistance to eliminate pipeline air leakage.

Product Description

It intercepts trace lubricant oil aerosol, condensed water vapor and fine dust mixed in compressed air, lowering residual oil content below 0.01 ppm. It provides reliable ultra-clean air protection for downstream high-precision pneumatic equipment and production processes, avoiding product surface oil contamination and equipment failure caused by impure compressed air.
