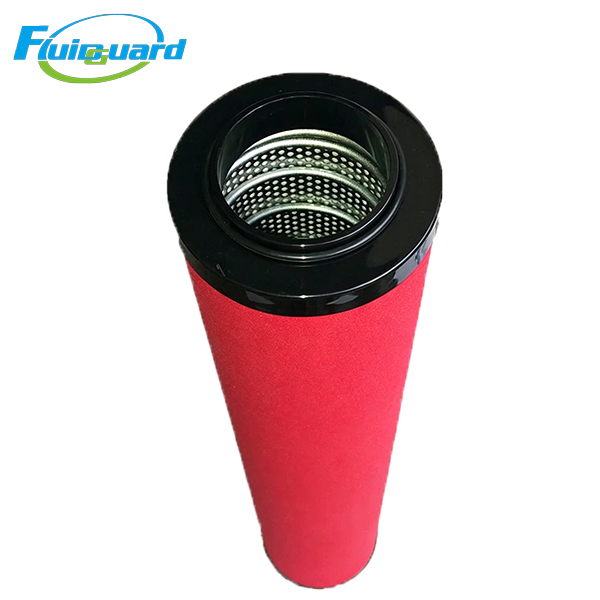

Model: 24232704

Core Technical Specifications

Core Function: Adsorb gaseous oil vapor, hydrocarbon odor, volatile organic compounds, residual trace oil mist

Outlet Remaining Oil Content: ≤0.003 ppm

Composite Media: Outer multi-layer hydrophobic borosilicate glass fiber + high-density coconut shell activated carbon adsorption core

Rated Airflow: 600 m³/h

Max Working Pressure: 17.2 bar / 250 PSIG

Continuous Operating Temperature: ≤80℃

Service Life Standard: 4000 working hours OR 12 months

Air Flow Direction: Outside-to-Inside

Seal Structure: Integral black reinforced plastic double end caps + built-in NBR nitrile O-ring full sealing

Support Frame: Corrosion-resistant reinforced plastic inner & outer protective cage, anti-carbon powder shedding

Key Product Advantages

Final Stage Deep Purification for Oil Vapor & Odor

Must be installed after Grade H ultra-fine coalescing filter. Removes invisible gaseous oil vapor and peculiar odors that glass fiber coalescing media cannot intercept, delivering fully odor-free, oil-free ultra-pure compressed air to meet high-end production standards.

Low Pressure Drop & Energy Saving

Optimized composite layered structure expands effective adsorption area, maintains stable low airflow resistance under 24h continuous full-load operation, reduces compressor power consumption and factory operating costs.

Large Adsorption & Dirt Holding Capacity

Gradient pre-filter fiber layer intercepts residual liquid oil mist to avoid carbon bed saturation; thick high-value coconut shell carbon provides massive adsorption capacity, extends maintenance cycle and reduces production downtime during replacement.

Anti-powder Reinforced Plastic Support Frame

Dual plastic protective cages block airflow impact, prevent media deformation and carbon powder leakage, avoid secondary carbon particle contamination of terminal precision equipment.

Working Principle

Compressed air after three-stage pre-filtration enters the cartridge from the outer plastic frame. Outer glass fiber layer traps residual tiny liquid oil droplets; internal high-density activated carbon bed fully adsorbs gaseous oil vapor, hydrocarbon odors and organic volatile substances. Pure, oil-free, odorless compressed air flows to terminal precision production equipment.

Application & Industries

Terminal adsorption filter for medium-flow industrial compressed air post-processing systems, only installed downstream of H grade ultra-fine coalescing filters.

Widely used in pharmaceutical aseptic production, food packaging, precision electronic assembly, medical equipment processing, optical coating, laboratory analytical instruments, automotive topcoat spraying, laser cutting, clean room centralized air supply systems requiring Class 1 ultra-pure oil-free compressed air.
