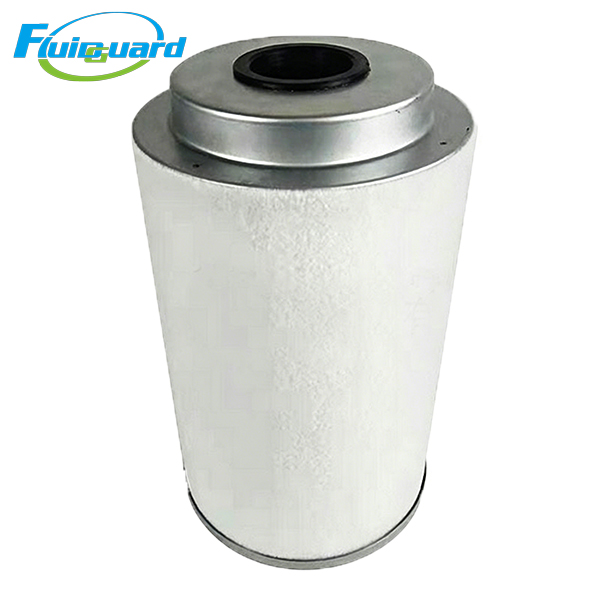

Model : OA1109
Type : Other Filters
Replacement for : OA1109
It adopts multi-layer gradient composite fiber lamination structure: the multi-density glass fiber layer captures micron-level oil droplets and ultra-fine oil mist generated during screw compression, aggregates tiny oil particles into large liquid oil drops and flows back to the oil sump by gravity.
Part numbers marked "replacement" are not affiliated with the original manufacture.
Fluidguard is a technology-based enterprise integrating industry and trade, with strong technical strength and production capacity.
Model No: OA1109
Filter Type: Built-in Air Oil Separator Element
Filter Media: Imported Gradient Composite Glass Fiber
Absolute Separation Precision: 0.1μm
Max Residual Oil Content: ≤3 PPM
Max Working Pressure: 1.3 MPa
Max Working Temperature: ≤110℃
Standard Service Life: 4000–6000 Working Hours
Net Weight: 1.18 KG
Application Scope
Road construction, mining, engineering rental portable air supply
General machinery pneumatic tools, sandblasting, drilling equipment supporting air source
Small factory temporary compressed air stations, pipeline pre-treatment front-end separation
Product Features
0.1μm absolute separation precision, oil mist removal efficiency ≥99.999%, outlet residual oil ≤3ppm, meets ISO8573-1 compressed air oil content standard.
Large-volume deep pleated composite fiber media provides outstanding oil holding capacity, effectively delaying pressure rise and extending replacement cycle.
Full metal welded structure with thick perforated steel inner frame, high collapse resistance, stable operation under 1.0–1.3MPa working pressure.
Imported HV/Lydall composite fiber media, resistant to high temperature, compressor lubricant oil and weak acid corrosion, no fiber shedding to avoid pipeline secondary pollution.
Optimized uniform fold layout maintains ultra-low initial pressure drop ≤0.02MPa, reducing compressor energy consumption and lowering long-term operation cost.
High-temperature fluorine rubber integrated sealing gasket, anti-aging and anti-leakage, completely eliminating oil and gas bypass inside oil tank.
Standard flange quick-install design for fast disassembly and replacement, cutting maintenance labor and spare parts cost of mobile air compressors.
