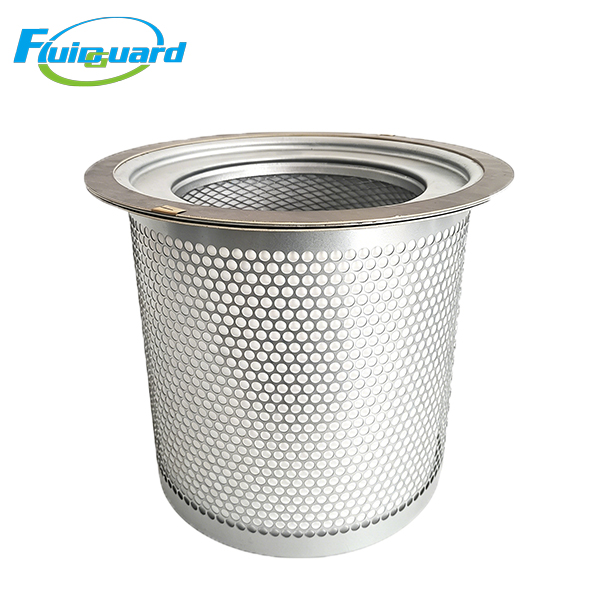

SB743 Air/Oil Separator Filter

Model : SB743

Type : Oil Separators Filters

Replacement for : SB743

SB743 is a high-flow vertical air/oil separator for 55–75kW screw compressors. It removes oil mist to ≤3ppm, ensures clean compressed air, and protects downstream pneumatic equipment.

Part numbers marked "replacement" are not affiliated with the original manufacture.

Send Inquiry Now

Description

PN: SB743

Type: Vertical Air-Oil Separator Cartridge

Filtration: 0.1 μm

Efficiency: ≥99.99%

Oil Carry-over: ≤3 ppm

Service Life: 3500–5200 hours

Max Pressure: 1.0 MPa

Temperature: -20°C ~ 120°C

Dimensions: Flange 355 × OD300 × ID220 × H305 mm

Weight: 6.5 kg

Features

High-efficiency coalescing glass fiber

Low pressure drop (≤0.02 MPa)

Heavy-duty steel mesh & corrosion-resistant housing

Vertical tank mount, easy installation

Stable performance under high load

Description

SB743 is a high-flow vertical air/oil separator for 55–75kW screw compressors. It removes oil mist to ≤3ppm, ensures clean compressed air, and protects downstream pneumatic equipment.
