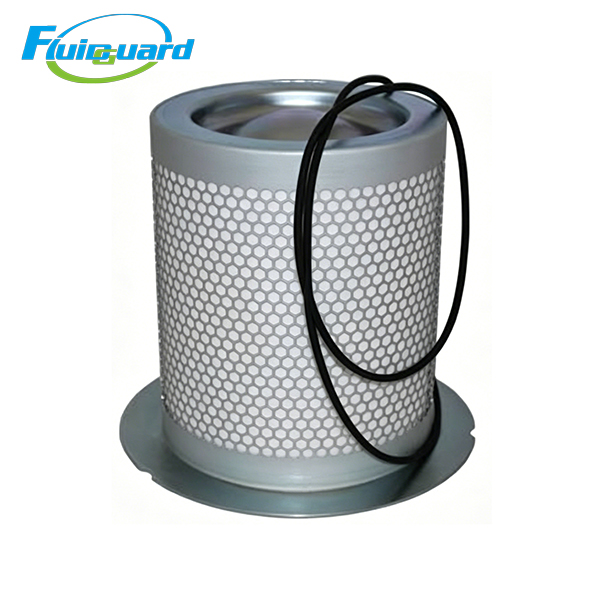

3220270 Air/Oil Separator Filter

Model : 3220270

Type : Oil Separators Filters

Replacement for : 3220270

Removes oil mist to ≤3ppm, ensures clean air and extends compressor life.

Part numbers marked "replacement" are not affiliated with the original manufacture.

Description

PN: 3220270

Type: External Spin-on Air/Oil Separator

Media: HV/Lydall borosilicate glass fiber

Filtration: 0.1 μm

Efficiency: ≥ 99.99%

Oil Carry-over: ≤ 3 ppm

Service Life: 4000–6000 hours

Max Pressure: 1.0 MPa

Temperature: -20°C ~ 120°C

Dimensions: H215 × OD145 × ID85 mm

Weight: 3.0 kg

Application

Field: Portable & stationary screw compressors

Features

High-efficiency coalescing glass fiber

Low pressure drop

Corrosion-resistant steel housing

Spin-on, easy replace

Reduces oil consumption ≤3ppm

Description

Removes oil mist to ≤3ppm, ensures clean air and extends compressor life.
