Oil Separators Filters

Part No: RN27527

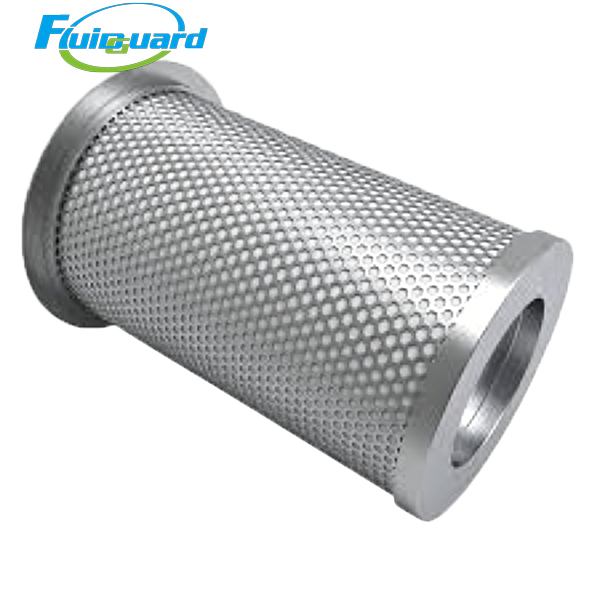

Product Name: Flange Mounted Built-in Air Oil Separator Element

Filter Medium: Multi-layer borosilicate microfiber glass fiber coalescing media

Residual oil content: ≤3 ppm

Service life: 4000–6000 working hours

Max operating temperature: 110℃

Rated working pressure: 16 bar

Sealing material: High-temperature fluororubber composite gasket

Main Features

Large-size integrated flange structure, precise mounting hole layout, stable positioning and convenient installation

Multi-stage high-efficiency coalescing filter material, excellent interception performance for submicron oil mist particles

Reinforced inner & outer perforated metal support cage, anti-deformation under long-term high airflow impact

High temperature resistant flat sealing gasket, effectively prevent air bypass and internal leakage

Low initial pressure drop, reduce energy consumption of large screw air compressor

Optimized uniform pleating layout, balance airflow distribution and extend service cycle

Application Industry

Widely used in machinery manufacturing, automotive processing, electronics, food, pharmaceutical, packaging and other large industrial compressed air stations.

Brief Summary

It separates lubricating oil mist from compressed air, improves outlet compressed air cleanliness and recycles lubricant oil to lower compressor oil consumption.
