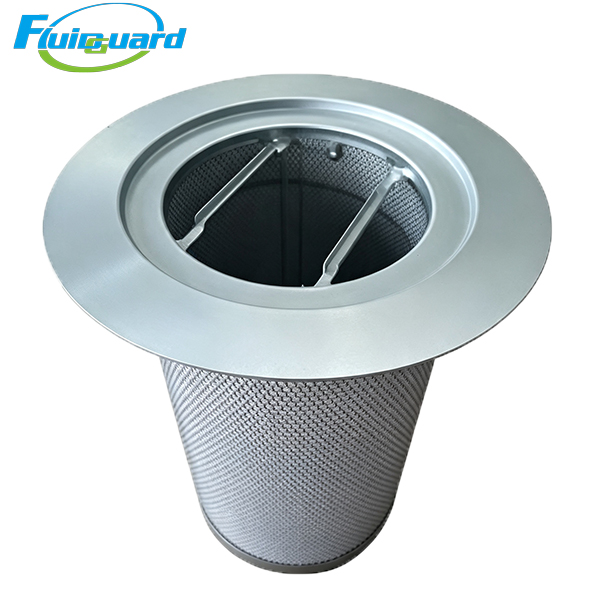

Oil Separators Filters

Part No: DC3357

Filter Medium: Multi-layer borosilicate microfiber glass fiber coalescing media

Residual oil content: ≤3 ppm

Service life: 4000–6000 working hours

Max operating temperature: 110℃

Rated working pressure: 16 bar

Sealing material: High-temperature fluororubber composite gasket

Main Features

Standard flange integrated structure, accurate hole position, stable installation and easy maintenance

Multi-stage high-efficiency coalescing medium, excellent interception performance for submicron oil mist particles

Reinforced inner & outer perforated metal support cage, anti-deformation under long-term high airflow impact

Heat-resistant sealing gasket, effectively prevent air bypass and internal leakage

Low initial pressure drop, reduce energy consumption of screw air compressor

Strictly comply with standard dimensional requirement, direct replacement without modification

Optimized uniform pleating layout, balance airflow distribution and extend service cycle

Application Industry

Universal replacement spare parts for industrial screw air compressors. Widely used in machinery manufacturing, automotive processing, electronics, food, pharmaceutical, packaging and other industrial compressed air stations.

Brief Summary

DC3357 is flange type built-in air oil separator element for screw air compressors. It separates lubricating oil mist from compressed air, improves outlet compressed air cleanliness and recycles lubricant oil to lower compressor oil consumption.
