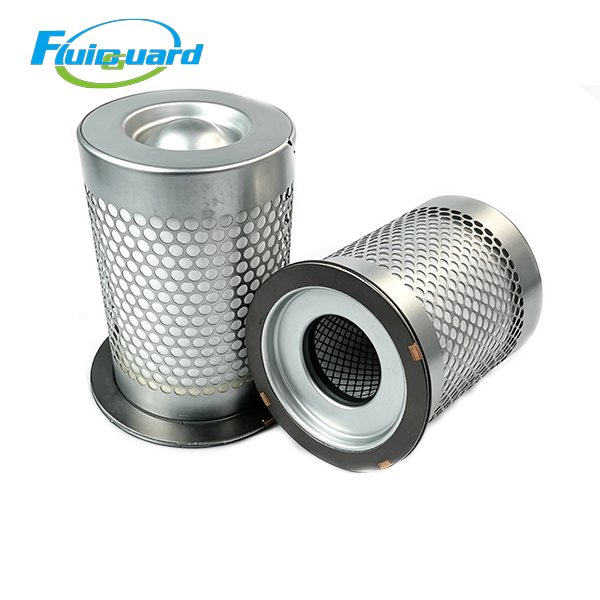

Oil Separators Filters

Part No: OLA0030

Filter Media: Imported HV multi-layer borosilicate micro glass fiber composite media

Separation Efficiency: ≥99.99%

Residual Oil Carry-over: ≤3 ppm

Standard Service Life: 3500–4000 working hours

Operating Temperature Range: -20℃ ~ 120℃

Initial Pressure Drop: ≤0.02 MPa

Replacement Alarm Differential Pressure: ≥0.08 MPa

Net Weight: 1.4 kg

Dimensions (mm)

Flange Outer Diameter: 200

Cartridge Outer Diameter: 152

Central Inner Hole Diameter: 90

Overall Height: 260

Application Scenarios

Auto repair workshops, plastic injection molding, electronic component assembly, small laser cutting equipment, textile printing factories, small factory central compressed air supply stations, medium-size pneumatic production lines

Product Features

Multi-gradient high-density glass fiber media with large oil mist storage capacity, anti-saturation under medium continuous loads, stably controls residual oil outlet ≤3 ppm through full service cycle.

Uniform deep-pleated low-resistance cylinder body with mild differential pressure rise during long-term operation, effectively reduces power consumption of 22kW main unit.

Double-layer perforated galvanized anti-static inner & outer support cages, corrosion and pressure surge resistant. Eliminates static ignition hazards in oil mist environment; filter media will not deform or collapse under continuous full-load running.

Product Description

It adopts high-efficiency gradient glass fiber coalescing separation technology to capture micron-scale lubricant aerosol mixed in compressed air. Separated lubricant flows back to compressor main unit via central bottom oil return tube for circulation, drastically cutting lubricating oil consumption and extending overall machine maintenance interval.

It provides full protection for downstream refrigerated dryers, adsorption dryers, precision pneumatic valves and laser cutting equipment, lowering breakdown rate and maintenance cost of air post-processing purification system.
