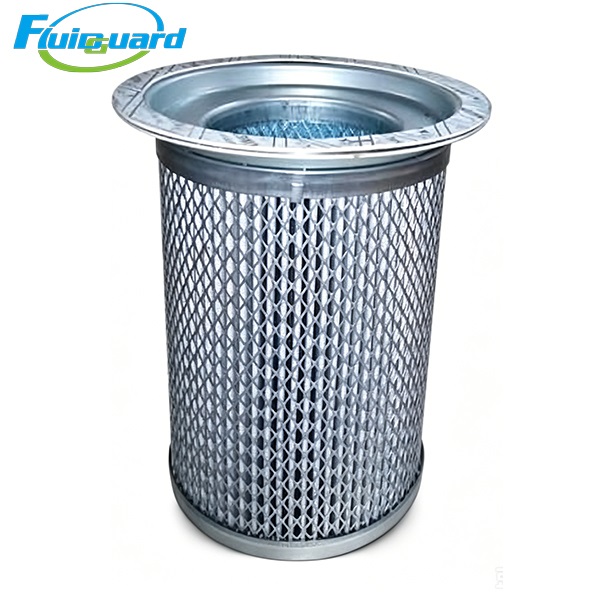

Model : OLA0020
Type : Oil Separators Filters
Replacement for : OLA0020
It adopts high-efficiency gradient glass fiber coalescing separation technology to capture micron-scale lubricant aerosol mixed in compressed air. Separated lubricant flows back to main unit via central bottom oil return tube for recycling, greatly reducing lubricating oil consumption and extending
Part numbers marked "replacement" are not affiliated with the original manufacture.
Fluidguard is a technology-based enterprise integrating industry and trade, with strong technical strength and production capacity.
Part No: OLA0020
Filter Media: Imported HV multi-layer borosilicate micro glass fiber composite media
Separation Efficiency: ≥99.99%
Residual Oil Carry-over: ≤3 ppm
Standard Service Life: 3500–4000 working hours
Max Working Pressure: 0.7–1.3 MPa
Operating Temperature Range: -20℃ ~ 120℃
Initial Pressure Drop: ≤0.02 MPa
Replacement Alarm Differential Pressure: ≥0.08 MPa
Net Weight: 1.35 kg
Dimensions (mm)
Flange Outer Diameter: 165
Cartridge Outer Diameter: 132
Central Inner Hole Diameter: 75
Overall Height: 210
Application Scenarios
Small auto repair workshops, electronic component assembly, mini plastic injection molding, textile printing, small laser cutting equipment, central compressed air supply stations for small factories, laboratory pneumatic equipment supporting
Product Features
Multi-gradient high-density glass fiber filter media with stable oil storage capacity, hard to saturate under long-term medium load, stably control residual oil output ≤3 ppm during full service cycle.
Uniform deep-pleated low-resistance cylinder body with slowly rising differential pressure, effectively cutting power consumption of 15kW main unit.
Double-layer perforated galvanized anti-static inner & outer support cages, anti-corrosion and pressure impact resistant. Eliminate static ignition risk in oil mist environment; filter media will not collapse or deform under full-load operation.
Product Description
It adopts high-efficiency gradient glass fiber coalescing separation technology to capture micron-scale lubricant aerosol mixed in compressed air. Separated lubricant flows back to main unit via central bottom oil return tube for recycling, greatly reducing lubricating oil consumption and extending the overall machine maintenance interval.
It provides effective protection for downstream refrigerated dryers, adsorption dryers, precision pneumatic valves and small laser cutting equipment, drastically lowering breakdown rate and maintenance cost of post-processing purification equipment.
