Oil Separators Filters

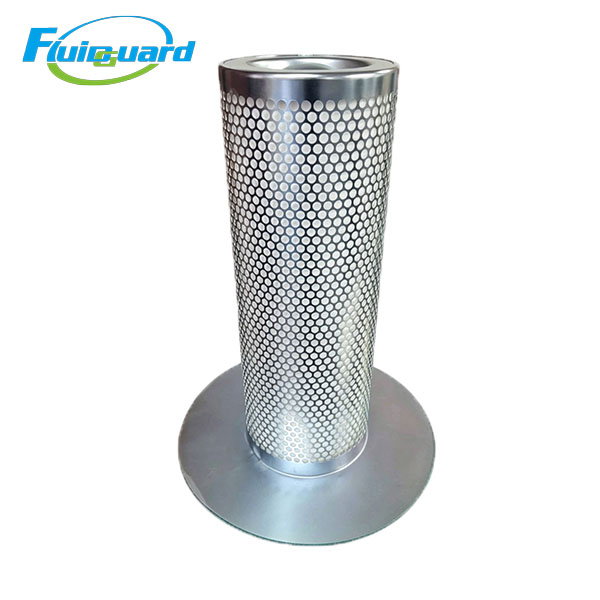

Part No: KV335-006

Filter Media: Multi-layer HV borosilicate micro glass fiber composite coalescing media

Separation Efficiency: ≥99.999%

Residual Oil Carry-over: ≤3 ppm

Standard Service Life: 4000–6000 working hours

Max Working Pressure: 0.7–1.3 MPa

Operating Temperature Range: -20℃ ~ 120℃

Initial Pressure Drop: ≤0.02 MPa

Replacement Alarm Differential Pressure: ≥0.08 MPa

Dimensions (mm)

Flange Outer Diameter: 328 mm

Cartridge Outer Diameter: 276 mm

Overall Height: 400 mm

Application Scenarios

Automotive assembly workshops, heavy machinery foundry, large injection molding plants, mine centralized air supply stations, chemical factory air compression stations, shipyard sandblasting & pipeline pressure testing, pharmaceutical clean air production lines

Product Features

Oversized multi-gradient glass fiber media with huge oil mist storage capacity, anti-saturation under long-term full-load operation, stably control outlet residual oil ≤3 ppm through full service cycle.

Deeply pleated low-resistance cylinder design, slow differential pressure rising, effectively reduce power consumption of medium-large screw main unit.

Double-layer thickened galvanized perforated anti-static inner & outer support cages, shock & corrosion resistant; filter media no deformation/collapse under maximum airflow, eliminate static ignition risk of oil mist.

High-temperature nitrile gasket resists aging & frequent temperature fluctuation, prevent air-oil bypass and excessive oil carry-over failure.

Product Description

It adopts high-efficiency gradient glass fiber coalescing separation technology to capture micron-level lubricant oil aerosol in large-volume compressed air. Separated oil flows back to compressor main unit via bottom gravity oil return tube for recycling, greatly cut oil refilling frequency and extend machine maintenance cycle.

It fully protects downstream refrigerated dryers, adsorption dryers, precision pneumatic valves and spraying equipment, reduce breakdown frequency and maintenance cost of air post-processing purification system.
