Oil Separators Filters

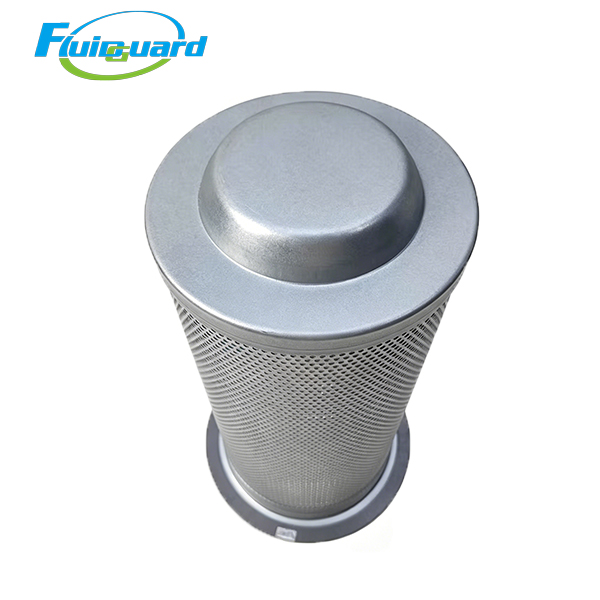

Model No: C3010010

Filter Type: Flanged Built-in Air Oil Separator

Filter Media: HV Borosilicate Composite Micro Glass Fiber

Filtration Precision: 0.1μm

Outlet Residual Oil Content: ≤3PPM

Outer Diameter: 5.91 inch

Overall Height: 13.78 inch

Inner Core Diameter: 3.62 inch

Max Working Pressure: 1.0MPa

Max Working Temperature: ≤120℃

Standard Service Life: 3500–6000 Working Hours

Product Features

Superb oil mist coalescing efficiency up to 99.99%, outlet residual oil ≤3PPM, meets industrial ISO8573 clean compressed air standard

Deep uniform star pleated layout maximizes effective filter area, strong oil & dirt holding capacity, standard service life 3500–6000 working hours

Thickened full-perforated galvanized metal inner cage, high structural rigidity, anti-collapse & anti-deformation under long-term large airflow pressure

Imported HV microglass media with outstanding resistance to high temperature and compressor lubricant corrosion, zero fiber shedding to avoid secondary air pollution

Optimized streamlined internal airflow channel keeps ultra-low initial pressure drop ≤0.02MPa, reduces whole air system power consumption

Integral full epoxy seamless flange sealing + matched elastic rubber gasket, completely eliminate air & oil bypass leakage

Max working temperature up to 120℃, adapt to standard industrial compressed air working pressure 0.7–1.0MPa

Application Scope

widely applied in auto manufacturing spraying lines, machinery processing, electronic assembly workshops, food & beverage processing, pharmaceutical production, chemical plants, textile mills, mining and centralized air compressor stations.
