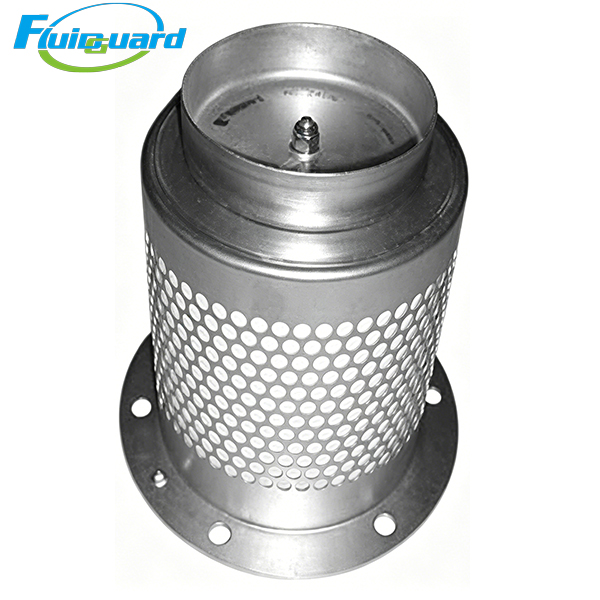

Model : AS2405
Type : Oil Separators Filters
Replacement for : AS2405
It fully coalesces and separates lubricating oil mist mixed in compressed air, strictly controlling residual oil content below 3 ppm. It effectively prevents oil contamination of downstream pneumatic pipelines and equipment, cuts down compressor lubricant consumption, maintains stable clean compress
Part numbers marked "replacement" are not affiliated with the original manufacture.
Fluidguard is a technology-based enterprise integrating industry and trade, with strong technical strength and production capacity.
PN: AS2405
Media: HV Borosilicate Micro Glass Fiber
Filtration Precision: 0.1 μm
Separation Efficiency: ≥ 99.99%
Oil Carry-over: ≤ 3 ppm
Service Life: 3500–6000 working hours
Max Working Pressure: 0.7–1.3 MPa
Operating Temperature Range: -20°C ~ 120°C
Initial Pressure Drop: ≤ 0.02 MPa
Net Weight: ~2.62 kg
Dimensions
Overall Height: 189 mm
Main Body OD: 168 mm
Flange Outer Diameter: 218 mm
Product Features
Multi-layer composite glass fiber media thoroughly intercepts ultra-fine oil mist particles
Optimized low-resistance internal structure reduces initial pressure drop and compressor power consumption
Anti-static perforated steel support cage, corrosion resistant and static explosion-proof
High-temperature resistant Viton rubber flange gasket for long-term leak-free sealing
Product Description
It fully coalesces and separates lubricating oil mist mixed in compressed air, strictly controlling residual oil content below 3 ppm. It effectively prevents oil contamination of downstream pneumatic pipelines and equipment, cuts down compressor lubricant consumption, maintains stable clean compressed air supply, and extends the overall service life of the complete air compressor system.
