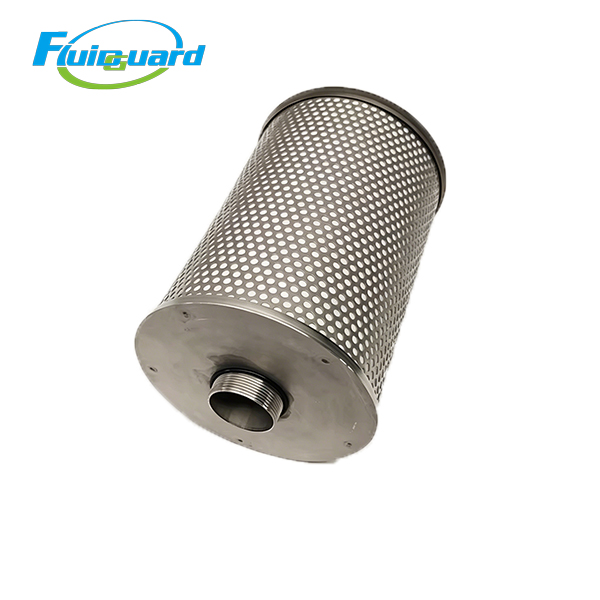

Oil Separators Filters

PN: 23441900

Type: Flange-mounted Oil Demister Coalescing Separator

Filtration Precision: 0.1 μm

Separation Efficiency: ≥ 99.99%

Oil Carry-over: ≤ 3 ppm

Service Life: 3500–6000 working hours

Max Working Pressure: 0.7–1.3 MPa

Operating Temperature Range: -20°C ~ 120°C

Initial Pressure Drop: ≤ 0.02 MPa

Net Weight: ~3.9 kg

Dimensions

OD: 242 mm

ID: 154 mm

Overall Height: 266 mm

Mounting Flange: Integral gasket flange, 290 mm outer diameter

Product Features

Multi-layer composite glass fiber media fully captures tiny oil mist particles for ultra-clean air output

Optimized low-resistance structure reduces initial pressure drop to lower compressor power consumption

Anti-static perforated steel support cage, anti-corrosion and static explosion-proof

High-temperature resistant composite rubber flange gasket for long-term leak-free sealing

Strictly consistent with OEM dimensional standards, direct plug-and-play replacement without modification

Product Description

It coalesces and separates lubricating oil mist mixed in compressed air, strictly controlling residual oil content below 3 ppm. It effectively avoids oil contamination to downstream pneumatic pipelines and equipment, cuts down compressor lubricant consumption, maintains stable clean compressed air supply, and extends the overall service life of the complete air compressor system.
