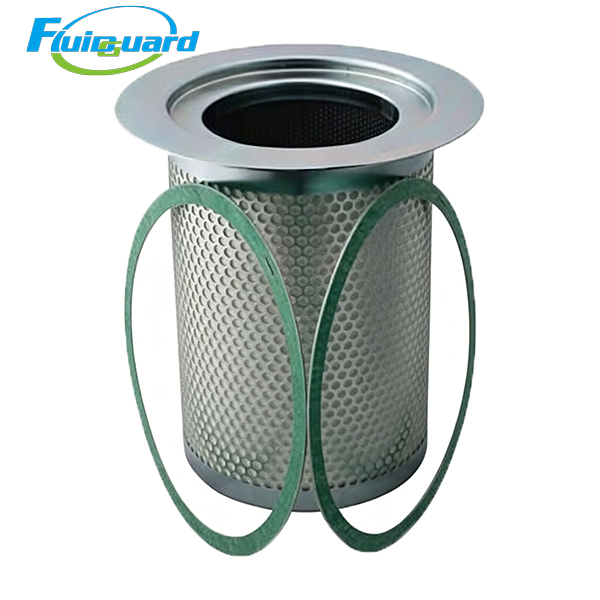

Model : 91111-003
Type : Oil Separators Filters
Replacement for : 91111-003
It removes oil mist efficiently, keeping residual oil ≤3 ppm, ensuring clean compressed air and long equipment life.
Part numbers marked "replacement" are not affiliated with the original manufacture.
Fluidguard is a technology-based enterprise integrating industry and trade, with strong technical strength and production capacity.
PN: 91111-003
Type: Vertical Flange Coalescing Separator
Media: HV Borosilicate Glass Fiber
Filtration: 0.1 μm
Efficiency: ≥99.99%
Oil Carry-over: ≤3 ppm
Service Life: 3500–6000 hours
Max Pressure: 0.7–1.3 MPa
Temperature:
Dimensions: OD 152 mm, Height 350 mm, 4-bolt flange
Weight: 4.2 kg
Features
High-performance HV glass fiber media
Low pressure drop
Corrosion-resistant steel mesh
4-bolt flange, direct OEM replacement
ISO 9001 certified
Description
It removes oil mist efficiently, keeping residual oil ≤3 ppm, ensuring clean compressed air and long equipment life.
