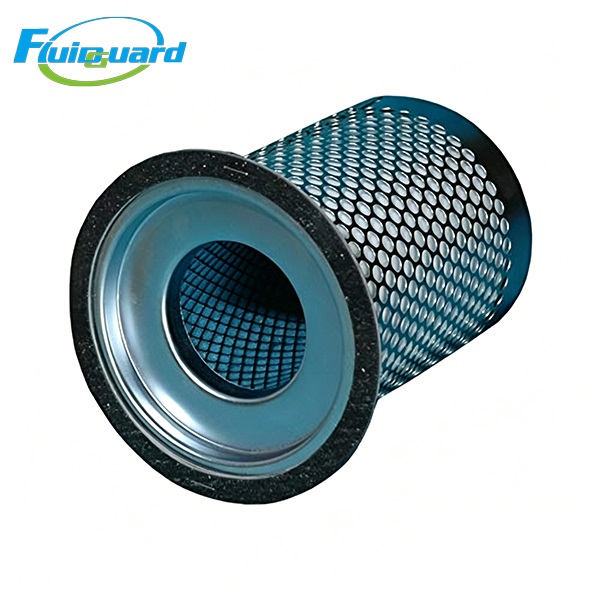

Oil Separators Filters

Part No.: 6259092100

Type: Flange-mounted built-in coalescing separator cartridge

Filter Media: Imported HV Borosilicate Micro Glass Fiber

Filtration Precision: 0.01 μm

Separation Efficiency: ≥ 99.99%

Residual Oil Carry-over: ≤ 3 ppm

Service Life: 3500–6000 working hours

Max Working Pressure: 0.7–1.3 MPa

Operating Temperature Range: -20°C ~ 120°C

Initial Pressure Drop: ≤ 0.02 MPa

Net Weight: ~4.7 kg

Dimensions

Outer Diameter (OD): 222 mm

Inner Diameter (ID): 140 mm

Overall Height: 308 mm

Product Features

Multi-layer imported HV glass fiber composite media with large oil mist holding capacity, maintaining stable coalescing performance under long-term continuous heavy industrial operation.

Optimized dense-pleat low-resistance structure delivers ultra-low initial pressure drop, slowing differential pressure rise and effectively reducing compressor power consumption.

Double-layer fully perforated anti-static inner & outer steel support cages, anti-corrosion and anti-static explosion-proof, preventing filter element deformation or collapse under high differential pressure.

Integrated high & low temperature resistant composite flange gasket, reliable sealing against drastic temperature changes to eliminate oil bypass leakage.

Product Description

It captures ultra-fine lubricant mist suspended in compressed air via advanced glass fiber coalescing technology, limiting residual oil content in outlet air below 3 ppm.

It fully protects downstream air dryers, precision pneumatic equipment and processing pipelines, significantly cuts lubricating oil consumption, supplies stable clean compressed air, and extends the service life of the whole compressor unit and post-processing accessories.
