Oil Separators Filters

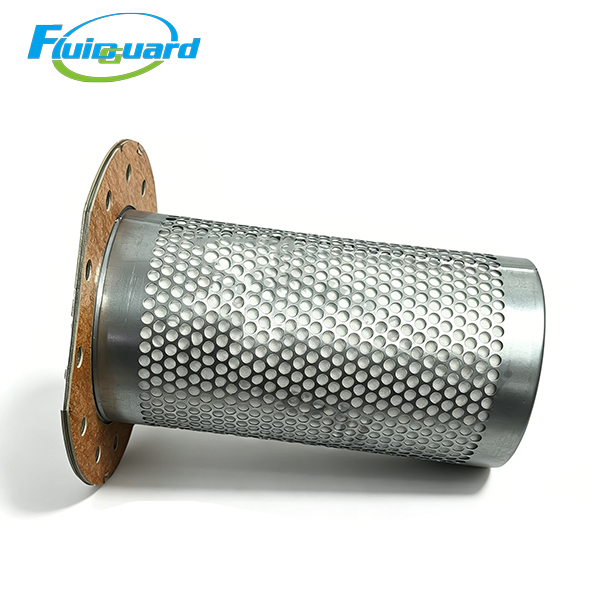

Part No: 6221374450

Type: Flange-mounted built-in coalescing separator cartridge

Filter Media: Imported HV Borosilicate Micro Glass Fiber composite media

Filtration Precision: 0.1 μm

Separation Efficiency: ≥ 99.99%

Residual Oil Carry-over: ≤ 3 ppm

Service Life: 3500–5000 working hours

Max Working Pressure: 0.7–1.3 MPa

Operating Temperature Range: -20℃ ~ 120℃

Initial Pressure Drop: ≤ 0.02 MPa

Net Weight: 3.8 kg

Dimensions

Cartridge Outer Diameter: 192 mm

Flange Outer Diameter: 260 mm

Overall Height: 365 mm

Application Scenarios

Automotive assembly workshops, metal fabrication, chemical plants, central industrial compressed air stations, food & pharmaceutical production requiring low-oil clean compressed air

Product Features

Multi-layer high-density HV ultra-fine glass fiber media with huge oil mist holding capacity, stable coalescing performance under long-term continuous heavy industrial load.

Optimized evenly pleated low-resistance layout with ultra-low initial pressure drop, slow differential pressure rise to effectively reduce long-term power consumption of medium-large screw compressors.

Double-layer fully perforated galvanized anti-static inner & outer support cages, corrosion-proof, shock and vibration resistant, no deformation or collapse under high differential pressure.

Thickened multi-hole steel flange with high-temperature resistant composite sealing gasket, reliable sealing under dramatic temperature fluctuations to eliminate oil bypass and over-limit residual oil in outlet compressed air.

Product Description

It adopts advanced HV borosilicate glass fiber coalescing technology to capture ultra-fine lubricant aerosol suspended in compressed air, controlling residual oil content of outlet compressed air below 3 ppm.It provides comprehensive protection for downstream air dryers, precision pneumatic actuators, long-distance air transmission pipelines and high-standard process equipment, drastically reduces lubricating oil refilling frequency, supplies ultra-clean stable compressed air, and extends the full service life of the whole compressor unit and all supporting post-processing accessories.
