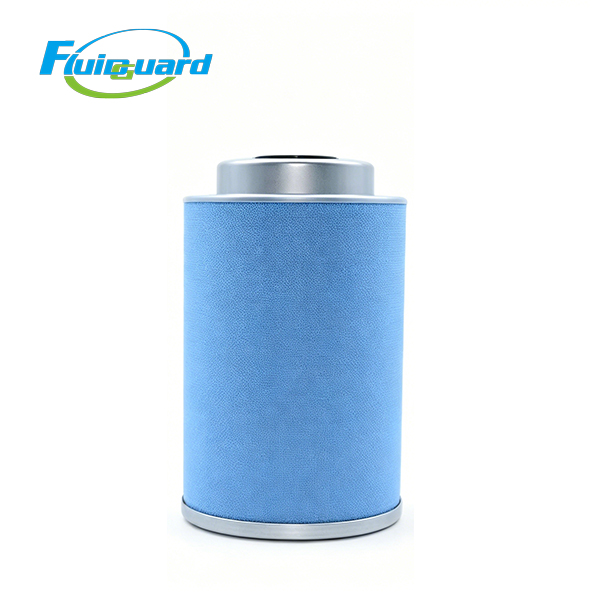

Oil Separators Filters

Part No: 250034-112

Type: Flange-mounted built-in coalescing separator cartridge

Filter Media: Imported HV Borosilicate Micro Glass Fiber composite media

Filtration Precision: 0.1 μm

Separation Efficiency: ≥ 99.99%

Residual Oil Carry-over: ≤ 3–5 ppm

Service Life: 3500–4000 working hours

Max Working Pressure: 0.7–1.0 MPa

Operating Temperature Range: -40℃ ~ 120℃

Initial Pressure Drop: ≤ 0.02 MPa

Net Weight: 1.9 kg

Dimensions

Flange Outer Diameter: 171 mm

Cartridge Outer Diameter: 152 mm

Overall Height: 175 mm

Application Scenarios

Auto repair shops, small machining workshops, plastic molding factories, textile plants, small centralized compressed air stations

Product Features

Multi-layer imported HV ultra-fine glass fiber media with stable oil mist interception capacity, reliable separation performance under continuous medium-load long-time operation.

Optimized uniform pleated low-resistance layout with ultra-low initial pressure drop, slow differential pressure rise to effectively cut compressor power consumption.

Single-layer perforated galvanized anti-static inner support cage, shockproof and anti-deformation under fluctuating system pressure, static-proof design eliminates fire risk.

High-temperature resistant Viton fluorine rubber sealing gasket, stable sealing under wide temperature variation to prevent oil bypass and over-limit residual oil in outlet compressed air.

Product Description

It adopts advanced HV micro glass fiber coalescing technology to capture ultra-fine lubricant aerosol suspended in compressed air, controlling residual oil content of outlet air below 5 ppm.It delivers full protection for downstream air dryers, precision pneumatic tools and short-distance air pipelines, greatly reduces lubricating oil refilling frequency, supplies clean stable compressed air, and extends the full service life of the whole compressor unit and all supporting post-processing accessories.
