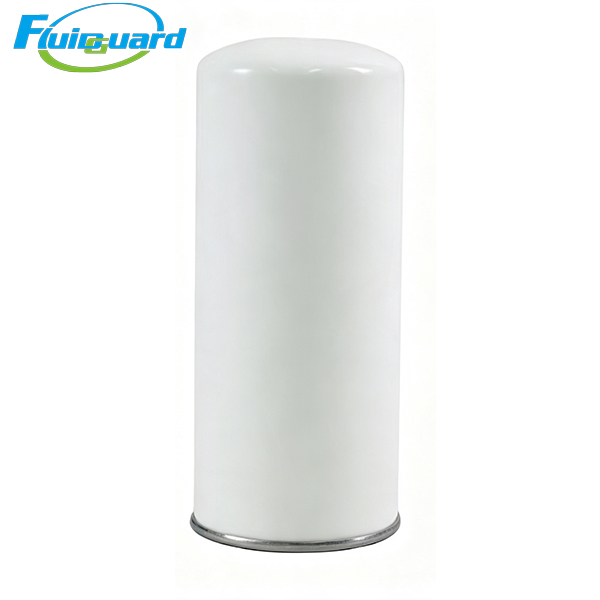

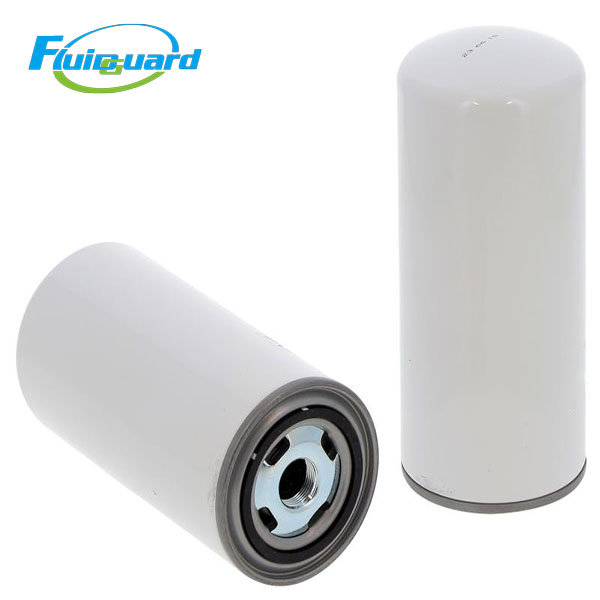

Oil Separators Filters

Key Product Features

High-capacity two-stage glass fiber coalescing media

Three-dimensional deep pleated borosilicate fiber traps micro oil droplets inside the compressed air stream. Tiny oil particles collide and aggregate into large liquid beads, which flow back to the oil tank by gravity. Effectively reduces compressor lubricant consumption and avoids oil contamination of downstream pipeline precision filters.

Heavy-duty anti-corrosion spin-on housing

Thickened steel can withstand long-term high-temperature and high-pressure operation inside the compressor system. Epoxy anti-rust paint prevents rusting under humid workshop environments, extending overall service life.

Tool-free screw-in quick replacement

Standard M22 spin-on threaded design, operators can twist and replace directly without special disassembly tools, greatly shortening equipment maintenance downtime. Integrated built-in sealing ring eliminates joint leakage risks.

Stable low differential pressure operation

Optimized uniform pleating layout ensures even air flow distribution inside the element, maintaining stable low airflow resistance throughout the whole service cycle. Avoid excessive pressure loss which causes extra power consumption of screw compressor host.

Application Industries

Furniture, hardware, automotive component spraying production workshops

Precision electronics assembly, optical lens processing factories

Food & beverage aseptic filling, pharmaceutical sterile workshops

General machinery automatic pneumatic assembly lines

Central air compressor stations, nitrogen generator supporting air purification

Brief Overview

It serves as the core secondary oil separation component to remove residual lubricating oil from compressed air, lower compressor oil consumption and protect downstream precision filtration equipment. Stable performance at -5℃~120℃ and maximum 20 bar burst pressure, it is essential routine maintenance consumable for industrial screw compressors.
