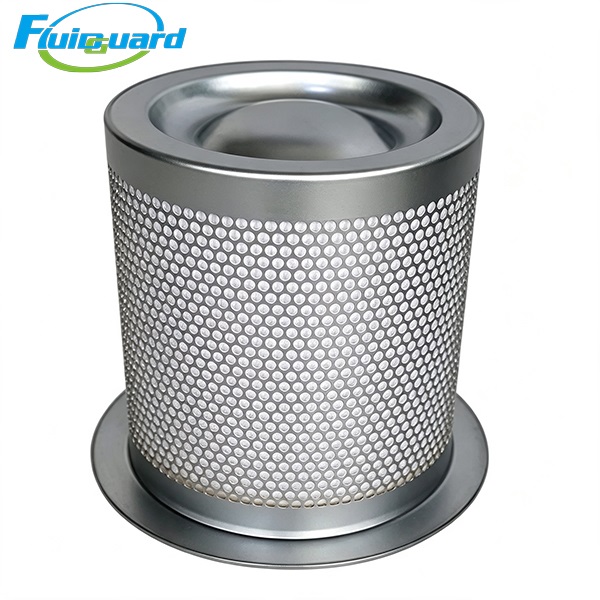

Oil Separators Filters

Key Product Features

Multi-stage gradient hydrophobic glass fiber coalescing media

Adopts imported layered microglass fiber with strong oleophobic coating. It captures fine compressor oil aerosols inside the oil tank, aggregates tiny oil droplets into large liquid oil, and flows back to the oil sump by gravity. Effectively reduces oil carryover of compressed air and greatly extends service life of post-line precision pipeline filters.

Heavy-duty fully sealed metal reinforced structure

Outer layer is thick galvanized perforated anti-rust steel mesh to fix filter media and prevent deformation under high-speed airflow. Integrated thick fiber composite flange gasket with excellent high-temperature & oil aging resistance, zero air bypass or oil leakage during long-term high-temperature operation. All metal parts undergo anti-corrosion epoxy coating treatment.

Low pressure drop energy-saving pleated layout

Uniformly layered fiber layout maximizes effective separation area, maintains stable low differential pressure throughout the whole service cycle. Avoids excessive pressure loss which increases compressor power consumption, keeps stable separation performance from start to replacement.

Application Industries

Industrial rotary screw air compressor original & aftermarket maintenance spare parts

General machinery manufacturing, automated pneumatic production lines

Packaging equipment, spraying workshops, textile machinery air supply systems

Light food processing, laboratory air sources, small medical pneumatic equipment

Brief Overview

With high-efficiency multi-layer glass fiber coalescing media, it completes primary gas-oil separation inside the compressor tank to control residual oil content of output compressed air within 3 ppm. Stable anti-high-temperature and anti-corrosion performance, widely used as standard maintenance replacement filter for Ingersoll Rand industrial screw compressors.
