Oil Separators Filters

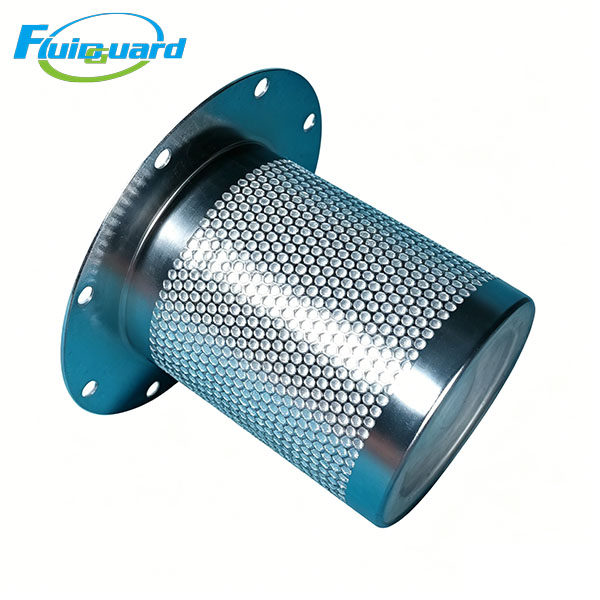

Part Number: 55110165100

Filter Media: Multi-layer gradient borosilicate microglass coalescing composite, inner & outer galvanized perforated metal protective mesh

Sealing Structure: Integral high-temperature resistant composite flat gasket at bottom flange

Separation Performance:

Captures oil mist particles ≥0.1 μm

Residual oil carryover in compressed air ≤3–6 ppm

Separation efficiency ≥99.99%

Max Working Pressure: 1.6 MPa

Continuous Operating Temperature Range: 60℃ ~ 110℃

Initial Pressure Drop: ≤0.02 MPa

Standard Service Life: 4,000 running hours or 12 months

Application Scenarios

Small factory single-unit screw air compressor stations, small mechanical processing workshops, auto repair small spray booth air supply, small food packaging production lines, laboratory small pneumatic equipment supporting compressors, small lithium battery laboratory pilot equipment

Product Features

High-density multi-layer microglass coalescing media achieves ultra-high interception efficiency for invisible submicron oil mist; gravity self-drain design minimizes oil loss and reduces operating cost.

Integrated galvanized metal mesh inner & outer support structure, excellent anti-vibration & anti-corrosion performance; filter media will not deform or collapse under long-term steady high-temperature airflow impact.

Integral composite flat flange gasket with uniform compression, stable sealing performance under long-term high operating temperature, effectively preventing internal oil-air leakage inside the tank.

Product Description

After rough gravity separation inside the oil tank, oil-air mixed gas flows through this element for secondary ultra-fine coalescence. It recovers most compressor lubricating oil to lower oil consumption, and greatly reduces oil contamination load of downstream pipeline precision filters, extending the service life of all inline compressed air filters.
