Oil Separators Filters

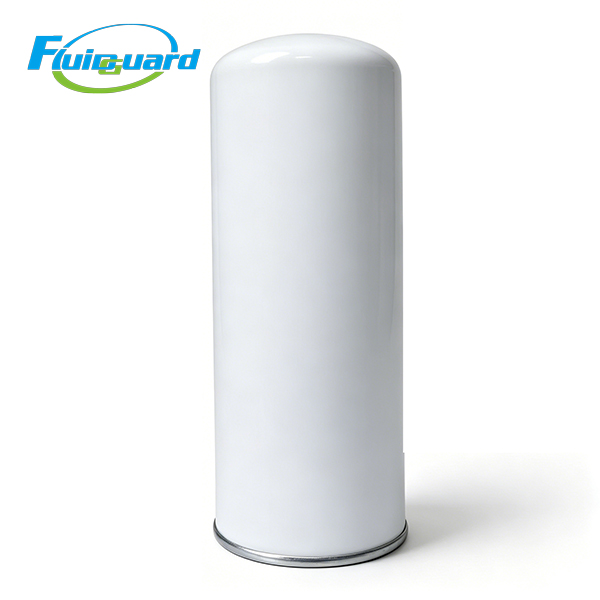

Part No: 1092203406

Filter Media: Imported HV multi-layer borosilicate micro glass fiber coalescing composite media

Filtration Precision: ≤0.1 μm fine oil mist capture

Separation Efficiency: ≥99.999%

Residual Oil Content at Air Outlet: ≤3 ppm

Standard Service Life: 3000–4000 working hours; shorten to 2000h under dusty & high-humidity workshop

Max Working Pressure: 14 bar

Operating Temperature Range: -20℃ ~ 120℃

Initial Pressure Drop: ≤0.02 MPa

Replacement Alarm Differential Pressure: ≥0.08 MPa

Gross Weight: 1.35 KG

Dimensions (mm): Outer Diameter 114, Overall Height 230

Application Scenarios

Auto parts precision machining, medium injection molding plants, electronic component assembly lines, factory centralized compressed air stations, food packaging workshops, laser cutting & automotive painting production lines

Product Features

Multi-gradient high-density glass fiber media with large oil holding capacity, anti-saturation under medium continuous load, residual oil stably controlled ≤3 ppm throughout full service cycle.

Thickened heavy-duty anti-rust metal shell, shock & corrosion resistant; filter media will not deform under medium airflow, eliminate static ignition risk of oil mist.

Fluorine seal withstand high temperature & aging, zero leakage under frequent start-stop and temperature fluctuation to avoid air-oil bypass and excessive oil carry-over.

Product Description

It adopts high-efficiency gradient glass fiber coalescing technology to capture micron-scale lubricant oil aerosol mixed in medium-flow compressed air. Separated lubricant flows back to airend via built-in return channel for cyclic reuse, greatly reduce oil refilling frequency and extend whole machine maintenance cycle.

It fully protects downstream refrigerated dryers, adsorption dryers, precision pneumatic valves, laser cutting heads and spray guns, lower failure rate & maintenance cost of post-air-treatment purification systems.
