Oil Separators Filters

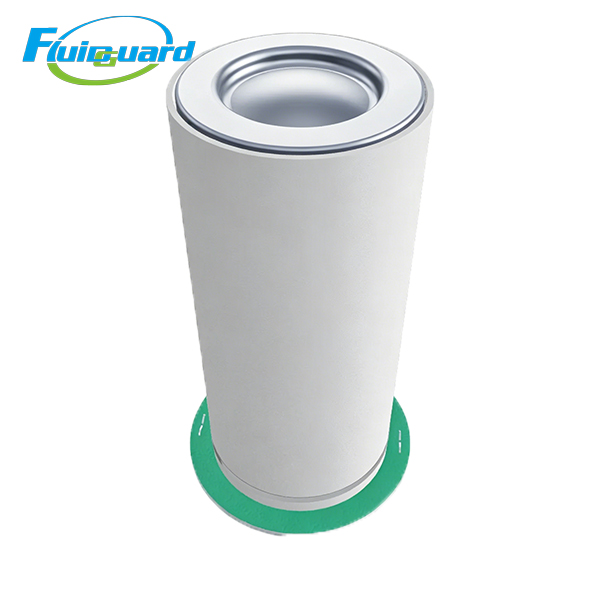

Part No: 54625942

Type: Built-in top flange coalescing separator cartridge

Filter Media: Imported HV Borosilicate Micro Glass Fiber

Filtration Precision: 0.1 μm

Separation Efficiency: ≥ 99.99%

Residual Oil Carry-over: ≤ 3 ppm

Service Life: 3500–6000 working hours

Max Working Pressure: 0.7–1.3 MPa

Operating Temperature Range: -20°C ~ 120°C

Initial Pressure Drop: ≤ 0.02 MPa

Net Weight: ~2.9 kg

Dimensions

Top Outer Diameter: 178 mm

Bottom Outer Diameter: 133 mm

Inner Diameter: 70 mm

Overall Height: 266 mm

Product Features

Multi-layer imported HV glass fiber composite media with excellent oil mist holding capacity, maintaining stable coalescing efficiency under dusty and continuous light-medium load operation.

Optimized tapered dense-pleat low-resistance structure delivers ultra-low initial pressure drop, slowing differential pressure rise and effectively reducing power consumption of small & portable compressors.

Double-layer fully perforated anti-static inner & outer steel support cages, shock and vibration resistant, preventing filter element deformation or collapse under bumpy outdoor working conditions.

Integrated high & low temperature resistant composite flange gasket with built-in oil return bridge, reliable sealing against drastic temperature fluctuation to eliminate oil bypass leakage.

Product Description

It captures ultra-fine lubricant mist suspended in compressed air via high-efficiency glass fiber coalescing technology, limiting residual oil content in outlet air below 3 ppm.

It fully protects downstream air dryers, small precision pneumatic tools and short-distance air pipelines, significantly cuts lubricating oil consumption, supplies stable clean compressed air, and extends the service life of the whole compressor unit and supporting post-processing accessories.
