Oil Separators Filters

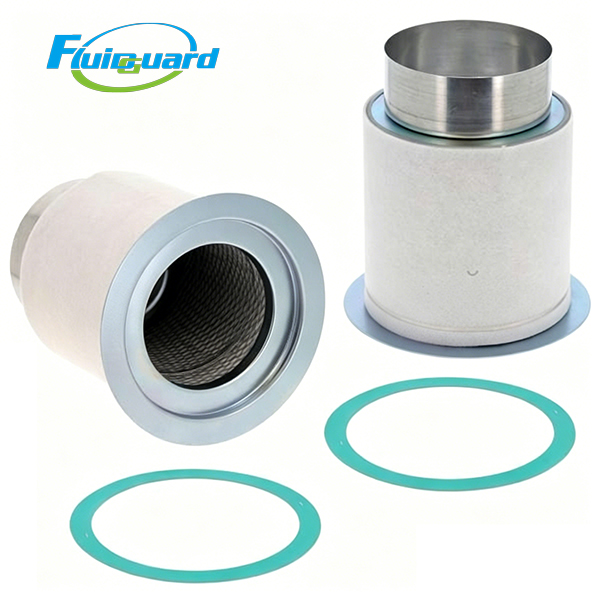

Part No: 4930252311

Type: Flange-mounted built-in coalescing separator cartridge

Filter Media: Imported USA HV Borosilicate Micro Glass Fiber

Filtration Precision: 0.1 μm

Separation Efficiency: ≥ 99.99%

Residual Oil Carry-over: ≤ 3 ppm

Service Life: 3500–6000 working hours

Max Working Pressure: 0.7–1.3 MPa

Operating Temperature Range: -20°C ~ 120°C

Initial Pressure Drop: ≤ 0.02 MPa

Net Weight: ~3.4 kg

Dimensions

Outer Diameter (OD): 182 mm

Inner Diameter (ID): 120 mm

Overall Height: 260 mm

Product Features

Multi-layer composite HV glass fiber media with large oil mist holding capacity, stable coalescing performance under long-term continuous industrial heavy load.

Optimized dense-pleat low-resistance design maintains ultra-low initial pressure drop, effectively slowing differential pressure rise and cutting compressor power consumption.

Double-layer fully perforated anti-static inner & outer steel support cages, anti-corrosion and static explosion-proof, preventing filter element deformation or collapse under high differential pressure.

Integrated high-low temperature resistant composite flange gasket, reliable sealing against drastic temperature fluctuation to eliminate oil bypass leakage.

Product Description

It captures ultra-fine lubricant mist suspended in compressed air via high-efficiency glass fiber coalescing technology, limiting residual oil content in outlet air below 3 ppm.

It fully protects downstream air dryers, precision pneumatic equipment and air pipelines, significantly reduces lubricating oil consumption, supplies stable clean compressed air, and extends the service life of the whole compressor unit and post-processing accessories.
