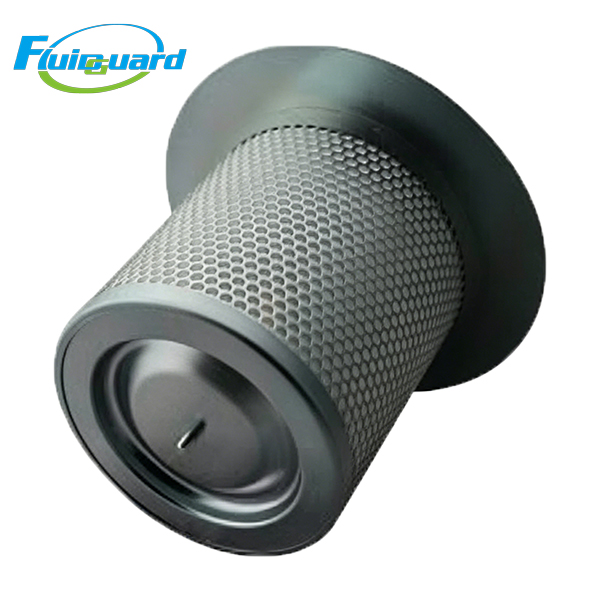

Oil Separators Filters

PN: 4940654102

Type: Flange-mounted coalescing separator cartridge

Filter Media: HV borosilicate micro glass fiber

Filtration Precision: ≤ 0.1 μm

Separation Efficiency: ≥ 99.99%

Oil Carry-over: ≤ 3 ppm

Service Life: 4000 – 6000 working hours

Initial Pressure Drop: ≤ 0.02 MPa

Max Working Pressure: 1.6 MPa

Working Temperature: -20°C ~ 120°C

Dimensions

Outer Diameter (OD): 225 mm

Height: 300 mm

Inner Diameter (ID): 150 mm

Flange OD: 360 mm

Weight: 4.6 kg

Application Fields: Industrial manufacturing, compressor stations, pneumatic systems

Features

High-efficiency multi-layer micro-glass fiber media ensures ultra-low oil carry-over

Reinforced steel inner frame prevents deformation and extends service life

Anti-static conductive structure ensures safe operation in harsh industrial environments

Optimized low pressure loss design reduces energy consumption

Description

It efficiently removes oil mist from compressed air, reduces oil consumption, and provides reliable protection for downstream pneumatic equipment.
