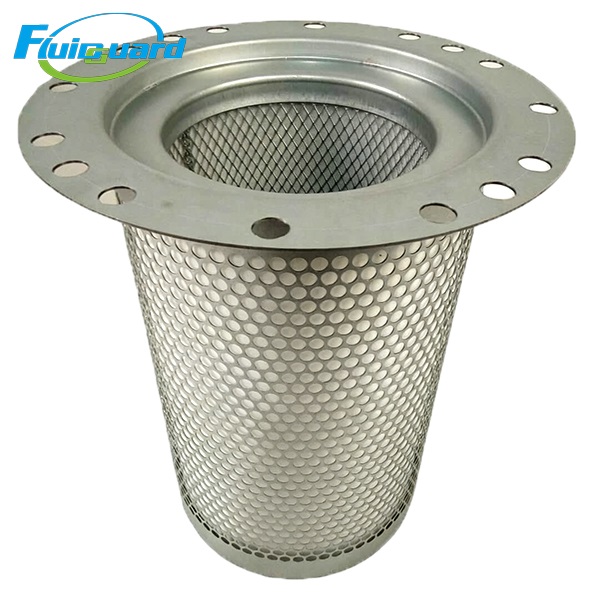

Oil Separators Filters

PN: 6221375050

Type: Flange-mounted coalescing separator cartridge

Filter Media: HV borosilicate micro glass fiber

Filtration Precision: ≤ 0.1 μm

Separation Efficiency: ≥ 99.99%

Oil Carry-over: ≤ 3 ppm

Service Life: 3500 – 5000 working hours

Initial Pressure Drop: ≤ 0.02 MPa

Max Working Pressure: 1.6 MPa

Working Temperature: -20°C ~ 120°C

Dimensions

Outer Diameter (OD): 220 mm

Height: 352 mm

Inner Diameter (ID): 155 mm

Flange OD: 365 mm (8 holes)

Weight: 4.5 kg

Application Fields: Industrial manufacturing, compressor stations, pneumatic systems

Features

High-performance HV micro-glass fiber media ensures ultra-low oil carry-over

Reinforced steel inner frame prevents deformation and extends service life

Anti-static conductive structure ensures safe operation in harsh industrial environments

Optimized low pressure loss design reduces energy consumption

Description

It removes oil mist from compressed air, reduces oil consumption, and protects downstream pneumatic equipment.
