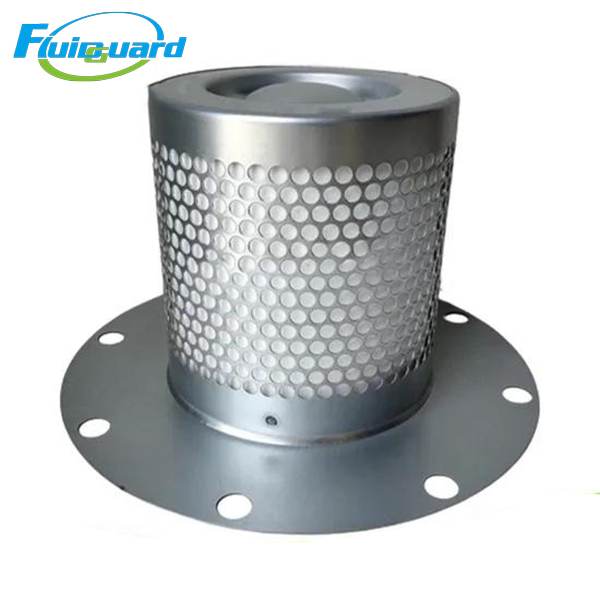

Oil Separators Filters

PN: 3743805700

Type: Internal Flanged Coalescing Separator

Media: HV Borosilicate Micro Glass Fiber

Filtration: ≤ 0.1 μm

Efficiency: ≥ 99.99%

Oil Carry-over: ≤ 3 ppm

Life: 3500–5000 hours

Max Pressure: 1.6 MPa

Temperature: -10°C ~ 120°C

Seal: NBR Gasket

Dimensions: H280 × OD220 × ID155 mm

Weight: 5.5 kg

Application

Field: Industrial stationary screw compressors

Features

6-bolt heavy flange design for large air flow

Anti-static conductive, explosion-proof performance

Low pressure drop, energy efficient

High dirt holding capacity for long service life

Ultra-low residual oil ≤3 ppm, fully protects downstream pneumatic components

Description

It efficiently removes oil mist from compressed air, reduces oil consumption and ensures stable operation of pneumatic systems.
