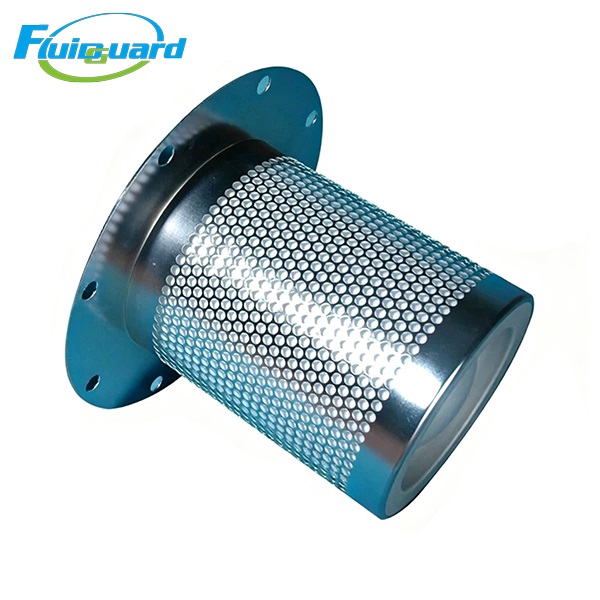

1613984000 Oil Separators Filter

Model : 1613984000

Type : Oil Separators Filters

Replacement for : 1613984000

Removes oil mist to ≤3 ppm, reduces oil consumption, ensures clean compressed air.

Part numbers marked "replacement" are not affiliated with the original manufacture.

Description

PN: 1613984000

Type: Internal Flanged Coalescing Separator

Filtration: ≤ 0.1 μm

Efficiency: ≥ 99.99%

Oil Carry-over: ≤ 3 ppm

Life: 3500–5200 hours

Max Pressure: 1.6 MPa

Temperature: -10°C ~ 120°C

Dimensions: H270 × OD219 × ID158 mm

Weight: 6.8 kg

Field: Industrial stationary screw compressors

Features

6-bolt heavy flange, large flow, compact

Anti-static conductive, explosion-proof

Low pressure drop, energy saving

High dirt holding capacity, long life

Ultra-low residual oil ≤3 ppm, protects pneumatic equipment

Description

Removes oil mist to ≤3 ppm, reduces oil consumption, ensures clean compressed air.
