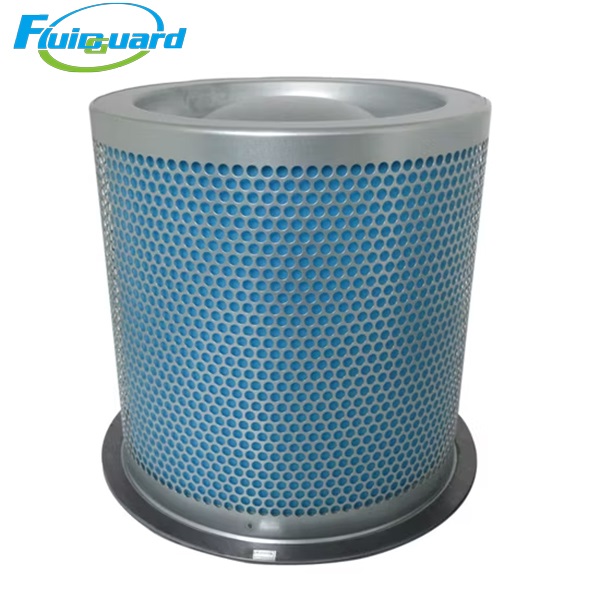

Model : 3422012501
Type : Oil Separators Filters
Replacement for : 3422012501
It removes oil aerosols from compressed air, ensuring low residual oil and protecting downstream equipment.
Part numbers marked "replacement" are not affiliated with the original manufacture.
Fluidguard is a technology-based enterprise integrating industry and trade, with strong technical strength and production capacity.
PN: 3422012501
Filtration efficiency: ≥99.99%
Oil carry‑over: ≤3 ppm
Filtration precision: 0.1 μm
Dimension: Flange OD 382 mm, OD 350 mm, ID 275–280 mm, Height 350–353 mm
Weight: 8.5 kg
Service life: 3500–5200 hours
Initial pressure drop: ≤0.02 MPa
Features
High‑efficiency glass fiber media, low pressure drop, high dust holding capacity.
Static‑conductive design prevents static electricity buildup.
Metal end caps with corrosion resistance for harsh site conditions.
Consistent 3 ppm residual oil, ideal for textile, pharmaceutical, and food industries.
Description
It removes oil aerosols from compressed air, ensuring low residual oil and protecting downstream equipment.
