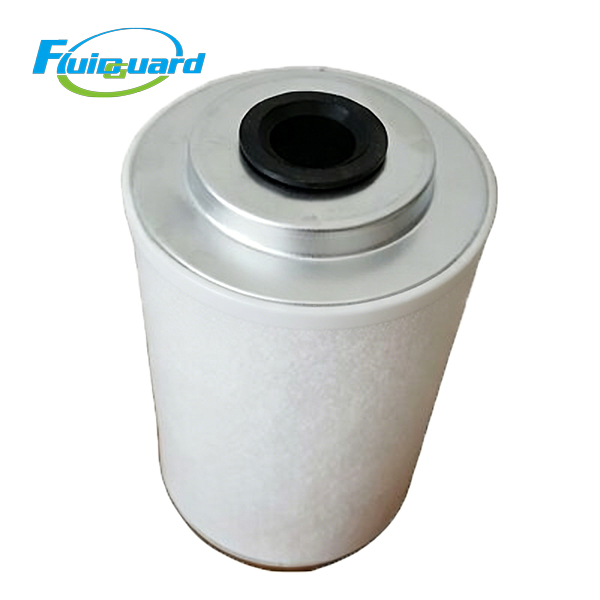

3002608710 Oil Separators Filter

Model : 3002608710

Type : Oil Separators Filters

Replacement for : 3002608710

It effectively removes oil mist from compressed air, maintains low residual oil content, and provides reliable protection for downstream pneumatic equipment in mining and engineering sites.

Part numbers marked "replacement" are not affiliated with the original manufacture.

Send Inquiry Now

Description

PN:3002608710

Filtration Precision: ≤ 0.1 μm

Separation Efficiency: ≥ 99.99%

Oil Carry-over: ≤ 3 ppm

Service Life: 3500 – 5000 working hours

Initial Pressure Drop: ≤ 0.02 MPa

Max Working Pressure: 2.5 MPa

Working Temperature: -20°C ~ 120°C

Seal Material: Nitrile rubber

Dimensions: Height 280 mm × OD 220 mm × ID 150 mm

Weight: 3.0 kg

Application Fields: Mining, construction engineering, mobile compressor stations, high-pressure pneumatic systems

Features

Designed for high-pressure working conditions, ideal for mobile compressors

Multi-layer glass fiber media delivers excellent oil mist removal performance

Anti-static structure ensures safe operation in complex working environments

Low pressure loss helps reduce energy consumption

Description

It effectively removes oil mist from compressed air, maintains low residual oil content, and provides reliable protection for downstream pneumatic equipment in mining and engineering sites.
