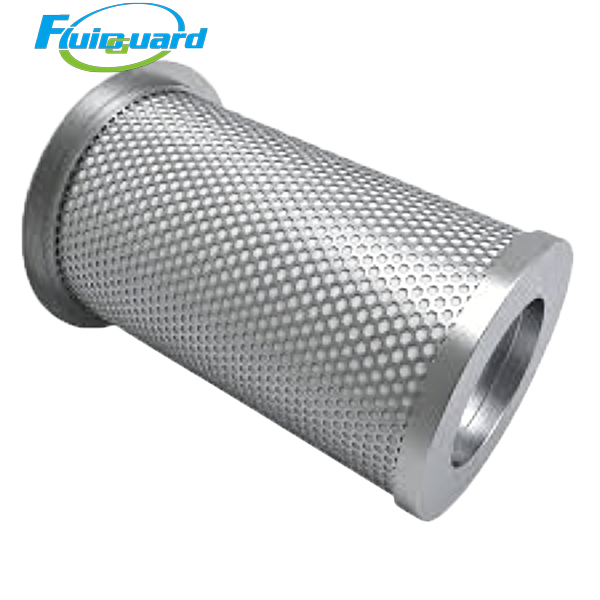

Oil Separators Filters

PN: 55300355305

Type: Built-in coalescing separator cartridge

Filtration Precision: ≤ 0.1 μm

Separation Efficiency: ≥ 99.9%

Oil Carry-over: ≤ 3 ppm

Service Life: 4000 working hours

Initial Pressure Drop: ≤ 0.02 MPa

Max Working Pressure: 1.6 MPa

Working Temperature: -20°C ~ 120°C

Weight:9.5 kg

Application Fields: Industrial manufacturing, large compressor stations, pneumatic systems

Features

High-efficiency multi-layer micro-glass fiber media ensures ultra-low oil carry-over

Reinforced steel inner frame prevents deformation and extends service life

Anti-static conductive structure ensures safe operation in harsh industrial environments

Optimized low pressure loss design reduces energy consumption

Description

It efficiently removes oil mist from compressed air, reduces oil consumption, and provides reliable protection for downstream pneumatic equipment.
