Oil Separators Filters

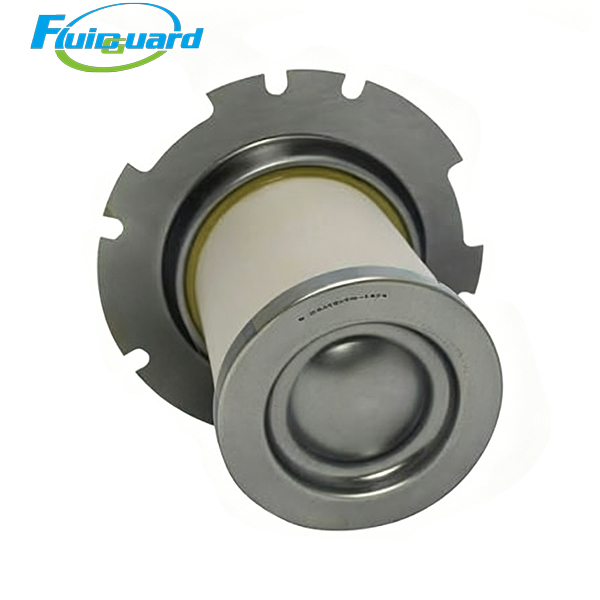

Part No: 3001151290

Type: Flange-mounted built-in coalescing separator cartridge

Filter Media: Imported HV Borosilicate Micro Glass Fiber

Filtration Precision: 0.1 μm

Separation Efficiency: ≥ 99.99%

Residual Oil Carry-over: ≤ 3 ppm

Service Life: 3500–6000 working hours

Max Working Pressure: 0.7–1.3 MPa

Operating Temperature Range: -20°C ~ 120°C

Initial Pressure Drop: ≤ 0.02 MPa

Net Weight: 4.0 kg

Dimensions

Outer Diameter (OD): 212 mm

Inner Diameter (ID): 134 mm

Overall Height: 286 mm

Product Features

Multi-layer imported HV glass fiber composite media with super-large oil mist storage capacity, maintaining stable coalescing performance under long-term continuous heavy industrial load.

Optimized dense-pleat low-resistance structure delivers ultra-low initial pressure drop, effectively slowing differential pressure rise and reducing long-term power consumption of medium screw compressors.

Double-layer fully perforated anti-static inner & outer steel support cages, anti-corrosion and static explosion-proof, preventing filter element deformation or collapse under high differential pressure.

Custom irregular multi-lug metal flange with matched high-temperature fluorine rubber O-ring, stable sealing against drastic temperature fluctuation to eliminate oil bypass leakage and oil carry-over faults.

Product Description

It captures ultra-fine lubricant mist suspended in compressed air via high-efficiency glass fiber coalescing technology, limiting residual oil content in outlet compressed air below 3 ppm.

It fully protects downstream air dryers, precision pneumatic equipment and long-distance air transmission pipelines, significantly cuts lubricating oil consumption, supplies stable clean compressed air, and extends the overall service life of the compressor unit and matched post-processing accessories.
