Oil Separators Filters

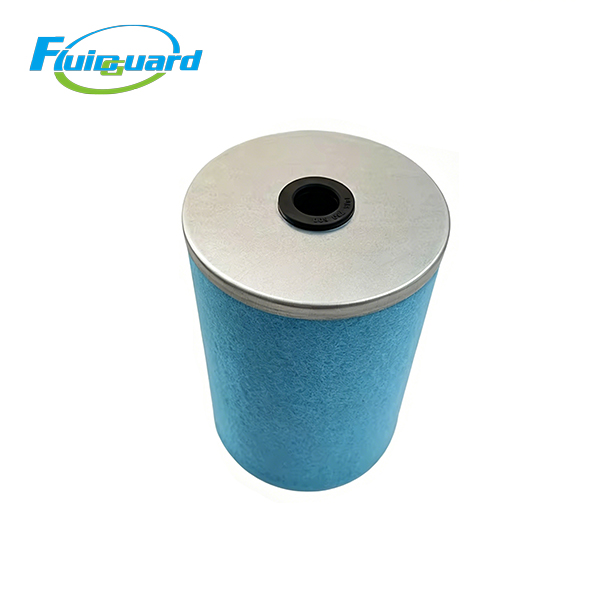

Part No: 1604039381

Type: Spin-on threaded built-in coalescing separator cartridge

Filter Media: Imported HV Borosilicate Micro Glass Fiber

Filtration Precision: 0.1 μm

Separation Efficiency: ≥ 99.99%

Residual Oil Carry-over: ≤ 3 ppm

Service Life: 3500–6000 working hours

Max Working Pressure: 0.7–1.3 MPa

Operating Temperature Range: -20°C ~ 120°C

Initial Pressure Drop: ≤ 0.02 MPa

Net Weight: 2.1 kg

Dimensions

Outer Diameter (OD): 132 mm

Top Thread Inner Diameter: M65 standard thread

Overall Height: 255 mm

Product Features

Multi-layer blue HV glass fiber composite media with large filtration area, excellent oil mist storage capacity, stable coalescing performance under continuous light & medium load operation.

Optimized uniform fiber stacking low-resistance design maintains ultra-low initial pressure drop, effectively slowing differential pressure rise and cutting power consumption of small screw compressors.

Integral sealed metal outer shell + anti-static inner support screen, strong shock and vibration resistance, preventing element deformation and oil bypass under fluctuating working pressure.

High-temperature resistant nitrile rubber thread sealing ring, stable sealing against drastic temperature fluctuation to eliminate oil leakage and oil carry-over faults.

Product Description

It captures ultra-fine lubricant mist suspended in compressed air via high-efficiency glass fiber coalescing technology, limiting residual oil content in outlet compressed air below 3 ppm.

It fully protects downstream air dryers, small precision pneumatic tools and short-distance air pipelines, significantly reduces lubricating oil consumption, supplies stable clean compressed air, and extends the overall service life of the compressor unit and matched post-processing accessories.
