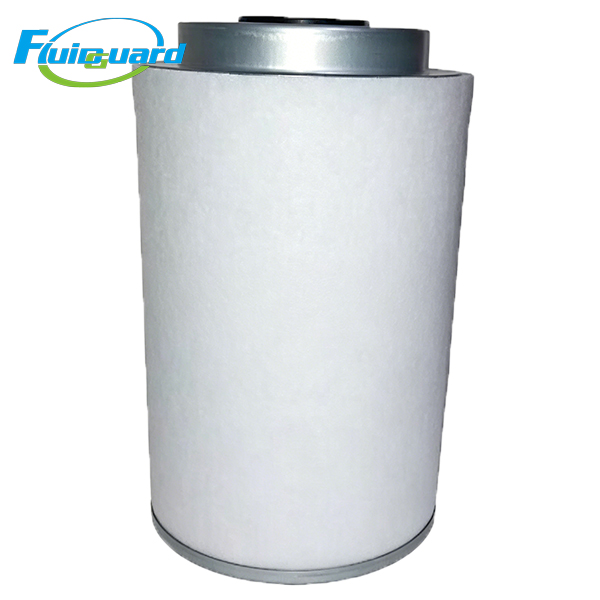

Oil Separators Filters

Part No: 2911016001

Type: Spin-on threaded built-in coalescing separator

Filter Media: Imported HV Borosilicate Micro Blue Glass Fiber

Filtration Precision: 0.1 μm

Separation Efficiency: ≥ 99.99%

Residual Oil Carry-over: ≤ 3 ppm

Service Life: 3500–6000 working hours

Max Working Pressure: 0.7–1.3 MPa

Operating Temperature Range: -20°C ~ 120°C

Initial Pressure Drop: ≤ 0.02 MPa

Net Weight: 2.1 kg

Dimensions

Outer Diameter (OD): 135 mm

Overall Height: 260 mm

Product Features

Multi-layer blue HV glass fiber composite media with large filtration area and strong oil mist holding capacity, stable coalescing efficiency under continuous light & medium load operation.

Optimized uniform fiber stacking low-resistance design maintains ultra-low initial pressure drop, effectively slows differential pressure rise and reduces power consumption of small screw compressors.

Thickened integral sealed metal outer shell + anti-static inner support mesh, outstanding shock and vibration resistance, prevents filter element deformation and oil bypass under fluctuating working pressure.

High-temperature resistant nitrile rubber integrated sealing ring, reliable sealing against drastic temperature swings to eliminate oil leakage and excessive oil residue in outlet compressed air.

Product Description

It adopts high-efficiency glass fiber coalescing technology to capture ultra-fine lubricant mist suspended in compressed air, controlling residual oil content of outlet air below 3 ppm.

It fully protects downstream air dryers, small precision pneumatic tools and short-distance air pipelines, significantly cuts lubricating oil consumption, supplies stable clean compressed air, and extends the overall service life of the compressor unit and matched post-processing accessories.
