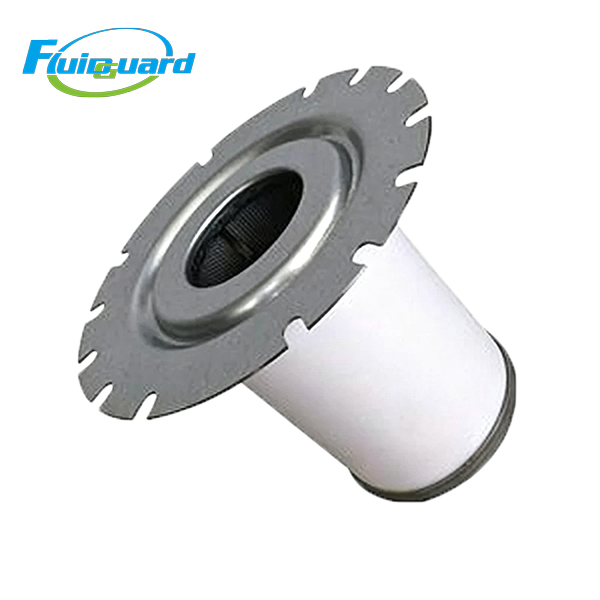

Oil Separators Filters

Part No: 2901021300

Type: Flange-mounted built-in coalescing separator cartridge

Filter Media: Imported HV Borosilicate Micro Glass Fiber composite material

Filtration Precision: 0.1 μm

Separation Efficiency: ≥ 99.99%

Residual Oil Carry-over: ≤ 3 ppm

Service Life: 3500–6000 working hours

Max Working Pressure: 0.7–1.3 MPa

Operating Temperature Range: -20°C ~ 120°C

Initial Pressure Drop: ≤ 0.02 MPa

Net Weight: ~6.3 kg

Product Features

Multi-layer imported HV glass fiber composite media with large oil mist holding capacity, stable coalescing performance under long-term continuous medium industrial heavy load.

Optimized dense-pleat low-resistance design keeps ultra-low initial pressure drop, effectively slows differential pressure rise and reduces long-term power consumption of medium screw compressors.

Double-layer fully perforated galvanized anti-static inner & outer steel support cages, corrosion-resistant and static conductive, prevents filter element deformation or collapse under high differential pressure.

Integrated thickened flat flange with matched high-temperature fluorine rubber gasket, reliable sealing against drastic temperature fluctuation to eliminate oil bypass leakage and excessive oil residue.

Product Description

It adopts high-efficiency glass fiber coalescing technology to capture ultra-fine lubricant mist suspended in compressed air, limiting residual oil content of outlet compressed air below 3 ppm.It fully protects downstream air dryers, precision pneumatic equipment and long-distance air transmission pipelines, significantly cuts lubricating oil consumption, supplies stable clean compressed air, and extends the service life of the whole compressor unit and matched post-processing accessories.
