Oil Separators Filters

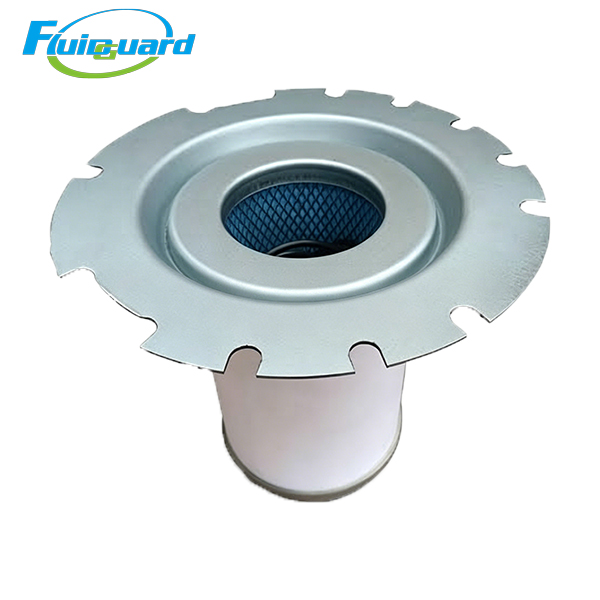

Part No: 2901905600

Type: Serrated multi-tooth flange built-in coalescing separator cartridge

Filter Media: Imported HV Borosilicate Micro Glass Fiber composite media

Filtration Precision: ≤0.1 μm

Separation Efficiency: ≥99.99%

Residual Oil Carry-over: ≤3 ppm

Service Life: 3000–4000 working hours

Max Working Pressure: 0.7–1.3 MPa

Operating Temperature Range: -20℃ ~ 120℃

Initial Pressure Drop: ≤0.02 MPa

Net Weight: 3.1 kg

Dimensions (mm)

Serrated Flange Outer Diameter: 300mm

Cartridge Outer Diameter: 167mm

Central Inner Hole Diameter: 104mm

Overall Height: 222mm

Product Features

Multi-layer dense HV ultra-fine borosilicate glass fiber media with large oil mist storage capacity, stable coalescing performance under long-term continuous medium-heavy industrial load.

Optimized uniform deep-pleated low-resistance layout with ultra-low initial pressure drop, slow differential pressure rise during long-cycle operation to reduce compressor power consumption effectively.

Double-layer fully perforated galvanized anti-static inner & outer support cages, anti-corrosion, shock resistant, no deformation or collapse under high differential pressure.

Standard serrated multi-tooth steel flange with complete matching mounting hole layout; matched nitrile O-ring effectively prevents oil bypass and excessive residual oil under drastic day-night temperature fluctuations.

Product Description

It adopts high-efficiency multi-layer borosilicate glass fiber coalescing technology to capture micro lubricant aerosol, controlling residual oil content of outlet compressed air below 3 ppm.It fully protects downstream refrigerated/adsorption dryers, precision pneumatic actuators and long-distance air pipelines, greatly extends lubricating oil replacement cycle, supplies ultra-clean stable compressed air, and prolongs the full service life of the whole compressor unit and supporting post-processing equipment.
