Oil Separators Filters

Part No: 54595442

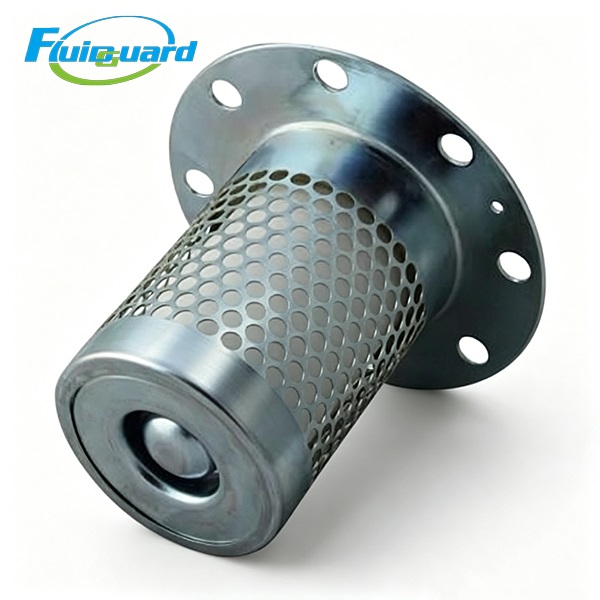

Type: Flat flange built-in coalescing separator cartridge

Filter Media: Imported HV Borosilicate Micro Blue Glass Fiber composite media

Filtration Precision: 0.1 μm

Separation Efficiency: ≥ 99.99%

Residual Oil Carry-over: ≤ 3 ppm

Service Life: 3000–4000 working hours

Max Working Pressure: 0.7–1.3 MPa

Operating Temperature Range: -20℃ ~ 120℃

Initial Pressure Drop: ≤ 0.02 MPa

Net Weight: 1.8 kg

Dimensions (mm)

Flange Outer Diameter: 210mm

Cartridge Outer Diameter: 148mm

Central Inner Hole Diameter: 86mm

Overall Height: 205mm

Application Scenarios

Auto repair shops, small machining factories, plastic injection molding, electronic assembly workshops, small factory centralized air supply stations

Product Features

Multi-layer dense borosilicate glass fiber filter media with large oil mist storage capacity, stable coalescing performance under long continuous light & medium industrial load.

Uniform deep-pleated low-resistance structure, ultra-low initial pressure loss, slow differential pressure rise during operation to lower compressor power consumption effectively.

Double-layer fully perforated galvanized anti-static inner & outer support cages, anti-corrosion, shock-resistant, no deformation under high pressure difference; anti-static design eliminates static ignition risk.

Standard single-layer flat steel flange with integrated high-temperature resistant rubber gasket, stable sealing under drastic day-night temperature fluctuation, effectively prevents oil bypass and excessive residual oil in compressed air.

Product Description

It adopts high-efficiency multi-layer glass fiber coalescing technology to capture micro lubricant aerosol, controlling residual oil content of outlet compressed air below 3 ppm.

It fully protects downstream refrigerated dryers, adsorption dryers, precision pneumatic tools and air pipelines, greatly extends lubricating oil replacement cycle, supplies clean stable compressed air, and prolongs service life of the whole compressor unit and post-processing equipment.
