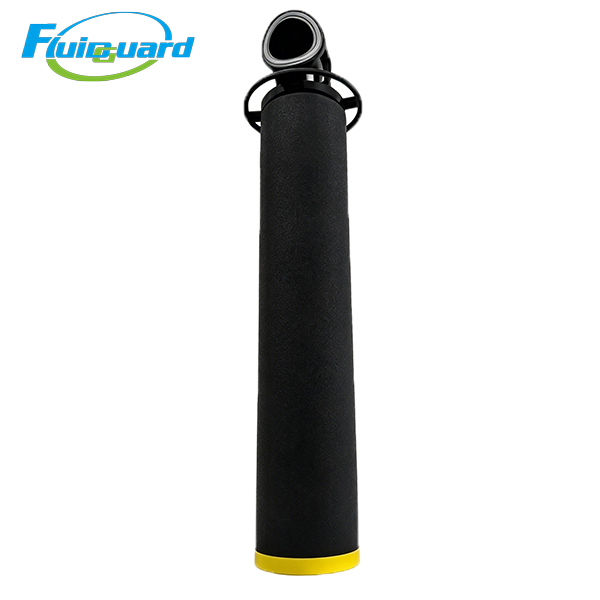

Oil Separators Filters

Model No: 2901207939

Filter Type: Flanged Built-in Air Oil Separator

Filter Media: HV Borosilicate Composite Micro Glass Fiber

Filtration Precision: 0.1μm

Outlet Residual Oil Content: ≤3PPM

Separation Efficiency: ≥99.99%

Max Working Pressure: 1.0MPa

Max Working Temperature: ≤120℃

Standard Service Life: 3500–6000 Working Hours

Structure Accessories: Stamped steel flange, fiber sealing gasket, double-layer galvanized metal protective mesh

Application Scope

Suitable for small power series fixed screw air compressors, widely applied in small machinery processing workshops, auto repair spraying booths, electronic component small assembly lines, food packaging factories, textile workshops, laboratory small gas supply and light industrial centralized air compressor rooms.

Product Features

High-efficiency coalescing glass fiber media, filtration precision 0.1μm, oil removal efficiency ≥99.99%, outlet residual oil ≤3PPM, fully meet ISO8573-1 industrial clean compressed air standard

Deep uniform star pleated layout maximizes effective filter area, excellent oil & dust holding capacity, standard service life 3500–6000 working hours

Double-layer thickened galvanized perforated metal mesh, high structural rigidity, anti-collapse & anti-deformation under long-term medium airflow pressure impact

Imported HV microfiber material with outstanding high temperature and compressor lubricant corrosion resistance, zero fiber shedding to prevent secondary compressed air pollution

Optimized streamlined internal airflow channel keeps ultra-low initial pressure differential ≤0.02MPa, effectively reduces overall energy consumption of small air compressor station

Integral stamped steel flange + matched high-temperature fiber sealing pad, completely eliminate air & oil bypass leakage at flange joint
