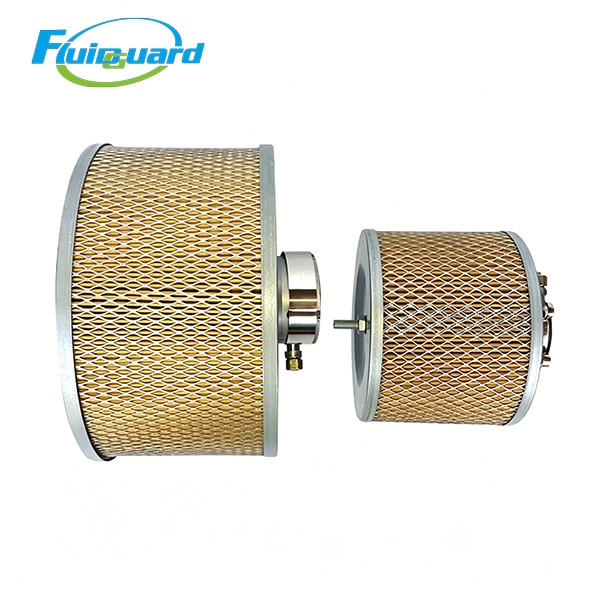

260706001 Oil Separators Filter

Model : 260706001

Type : Oil Separators Filters

Replacement for : 260706001

It effectively removes oil mist from compressed air to ≤3 ppm, reduces oil consumption, and provides reliable protection for downstream pneumatic components.

Part numbers marked "replacement" are not affiliated with the original manufacture.

Send Inquiry Now

Description

PN: 260706001

Type: Internal Flanged Coalescing Separator

Media: HV Borosilicate Micro Glass Fiber

Filtration: ≤ 0.1 μm

Efficiency: ≥ 99.99%

Oil Carry-over: ≤ 3 ppm

Life: 3500–4500 hours

Max Pressure: 1.6 MPa

Temperature: -10°C ~ 120°C

Dimensions: H210 × OD190 × ID130 mm

Weight: 3.2 kg

Field: Stationary industrial screw compressors

Features

4-bolt flange mounting, compact size, easy replacement

Anti-static conductive, explosion-proof

Low pressure drop, energy saving

High dirt holding capacity, long service life

Ultra-low residual oil ≤3 ppm, protects downstream pneumatic equipment

Description

It effectively removes oil mist from compressed air to ≤3 ppm, reduces oil consumption, and provides reliable protection for downstream pneumatic components.
