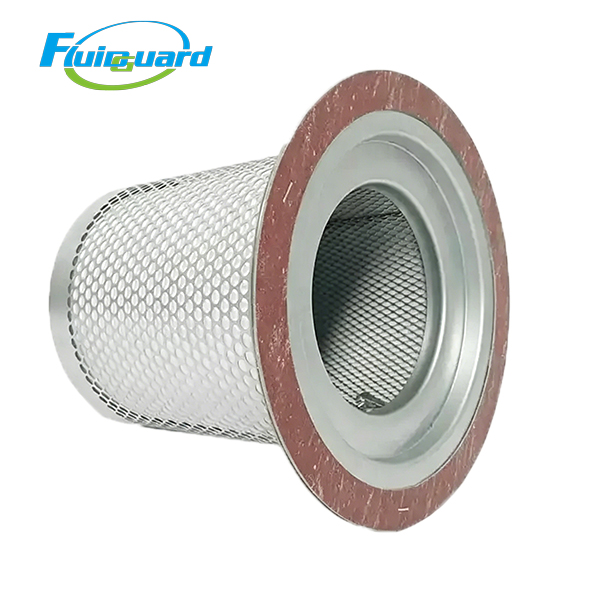

Oil Separators Filters

PN: 2116010162

Type: Internal Flanged Coalescing Separator

Media: HV Borosilicate Micro Glass Fiber

Filtration: ≤ 0.1 μm

Efficiency: ≥ 99.99%

Oil Carry-over: ≤ 3 ppm

Life: 4000–6000 hours

Max Pressure: 1.6 MPa

Temperature: -10°C ~ 120°C

Dimensions: H260 × OD240 × ID170 mm,

Weight: 5.1 kg

Field: Industrial screw compressors, stationary units

Features

6-bolt flange, heavy-duty industrial design

Anti-static conductive, explosion-proof

Low pressure drop, energy saving

High dirt holding, long service life

Ultra-low residual oil ≤3 ppm

Description

Removes oil mist to ≤3 ppm, reduces oil consumption, protects downstream pneumatic equipment.
