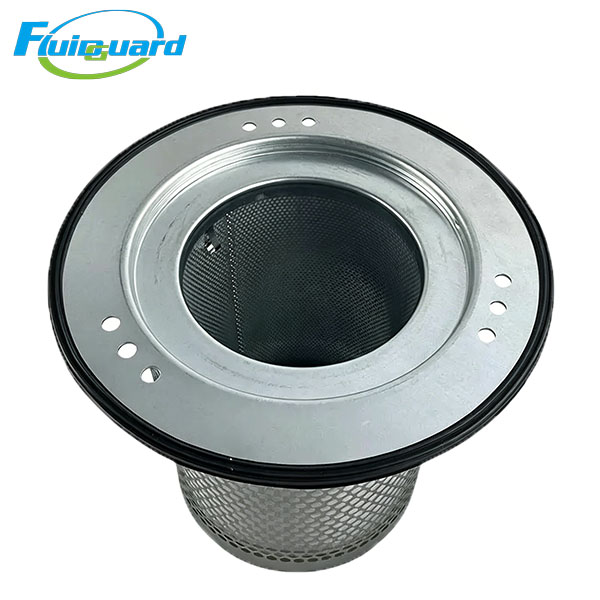

Oil Separators Filters

PN: 1630140000

Media: High-efficiency borosilicate glass fiber with 3D pre-filter layer

Filtration rating: 1 μm

Residual oil content: ≤ 0.6 mg/m³ (approx. 0.5 ppm) at 21°C

Filtration efficiency: ≥ 99.9% for oil mist and moisture

Dimensions: OD 65 mm, Height 280 mm

Max working pressure: ≤ 1.6 MPa

Max working temperature: ≤ 120°C

Initial pressure drop: ≤ 0.02 MPa

Service life: 4000 – 8000 working hours or 1 year

Features

Effectively removes liquid water, oil droplets and solid particles above 1 μm.

Low pressure drop design saves energy and maintains stable performance.

Push-in installation with double O-ring seal for easy maintenance and no bypass.

Stainless steel inner core and epoxy sealed end caps for excellent corrosion resistance.

Description

This coalescing filter element is specially used for main line compressed air purification. It provides reliable protection for downstream equipment by removing moisture, oil mist and contaminants, and delivers high-quality compressed air for various industrial applications.
