Oil Separators Filters

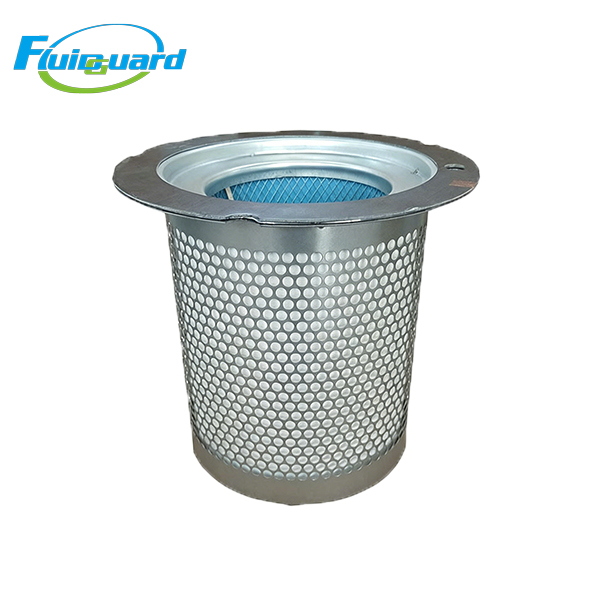

PN: 1625725300

Type: Internal tank-mounted coalescing separator

Filtration Precision: ≤ 0.1 μm

Separation Efficiency: ≥ 99.99%

Oil Carry-over: ≤ 2–3 ppm

Service Life: 6000–8000 hours

Initial Pressure Drop: ≤ 0.02 MPa

Max Working Pressure: 1.6 MPa

Working Temperature: -20°C ~ 120°C

Dimensions: H270 × OD213 × ID157 mm

Weight: 4.2 kg

Fields: Industrial workshop, small factory, pneumatic systems

Features

Built-in tank type, compact, no external housing needed

High-density glass fiber, ultra-low residual oil

Flange mounting, easy installation & replacement

Anti-static conductive, explosion-proof

Low pressure loss, energy saving

Description

Installed inside air-end tank, removes oil mist efficiently, reduces oil consumption, protects downstream pneumatic equipment.
