Oil Separators Filters

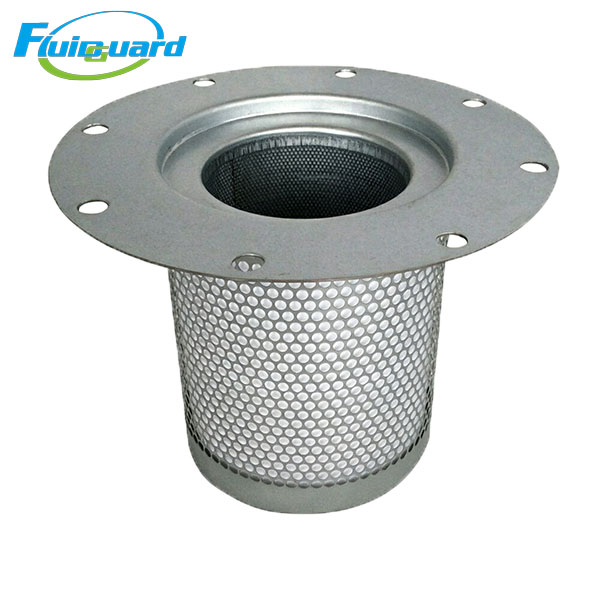

Part No: 1625703700

Type: Serrated multi-tooth flange built-in coalescing separator cartridge

Filter Media: Imported HV Borosilicate Micro Glass Fiber composite media

Filtration Precision: 0.1 μm

Separation Efficiency: ≥ 99.99%

Residual Oil Carry-over: ≤ 3–6 ppm

Service Life: 3500–6000 working hours

Max Working Pressure: 0.7–1.3 MPa

Initial Pressure Drop: ≤ 0.02 MPa

Net Weight: ~1.5 kg

Dimensions

Serrated Flange Outer Diameter: 202 mm

Cartridge Outer Diameter: 131 mm

Central Inner Hole Diameter: 72.3 mm

Overall Height: 140 mm

Application Scenarios

Auto repair shops, small machining workshops, plastic injection molding, textile factories, electronic assembly lines, small centralized industrial compressed air stations

Product Features

Multi-layer dense HV ultra-fine glass fiber media with excellent oil mist holding capacity, stable coalescing performance under long-term continuous light & medium industrial load.

Optimized uniform pleated low-resistance layout with ultra-low initial pressure drop, slow differential pressure rise during long-cycle operation to effectively reduce daily power consumption of small screw compressors.

Single-layer perforated galvanized anti-static inner support cage, lightweight, shockproof and anti-deformation under fluctuating system pressure; anti-static design eliminates static ignition risk.

Serrated multi-tooth steel flange perfectly matches original tank mounting hole layout; supporting wide-temperature nitrile O-ring prevents oil bypass and excessive residual oil under drastic temperature changes day and night.

Product Description

It adopts advanced HV borosilicate glass fiber coalescing technology to capture ultra-fine lubricant aerosol suspended in compressed air, controlling residual oil content of outlet compressed air below 6 ppm.It delivers comprehensive protection for downstream air dryers, precision pneumatic tools and short-distance air transmission pipelines, greatly reduces lubricating oil refilling frequency, supplies clean stable compressed air, and extends the full service cycle of the whole compressor unit and all supporting post-processing accessories.
